Advanced Thermocouple Datalogger
Automatically records up to 16,000 data points in the field.
These can later be downloaded to a computer via the meter’s computer port and the results viewed instantly on the ThermoLog Software which is downloadable on our website. The software also enables real-time data logging directly from the thermometer to the computer. Maximum Interval Setting Time is 60 minutes in Datalogger Mode. Also features min/max/average, relative temperature, auto power off, and hold functions.

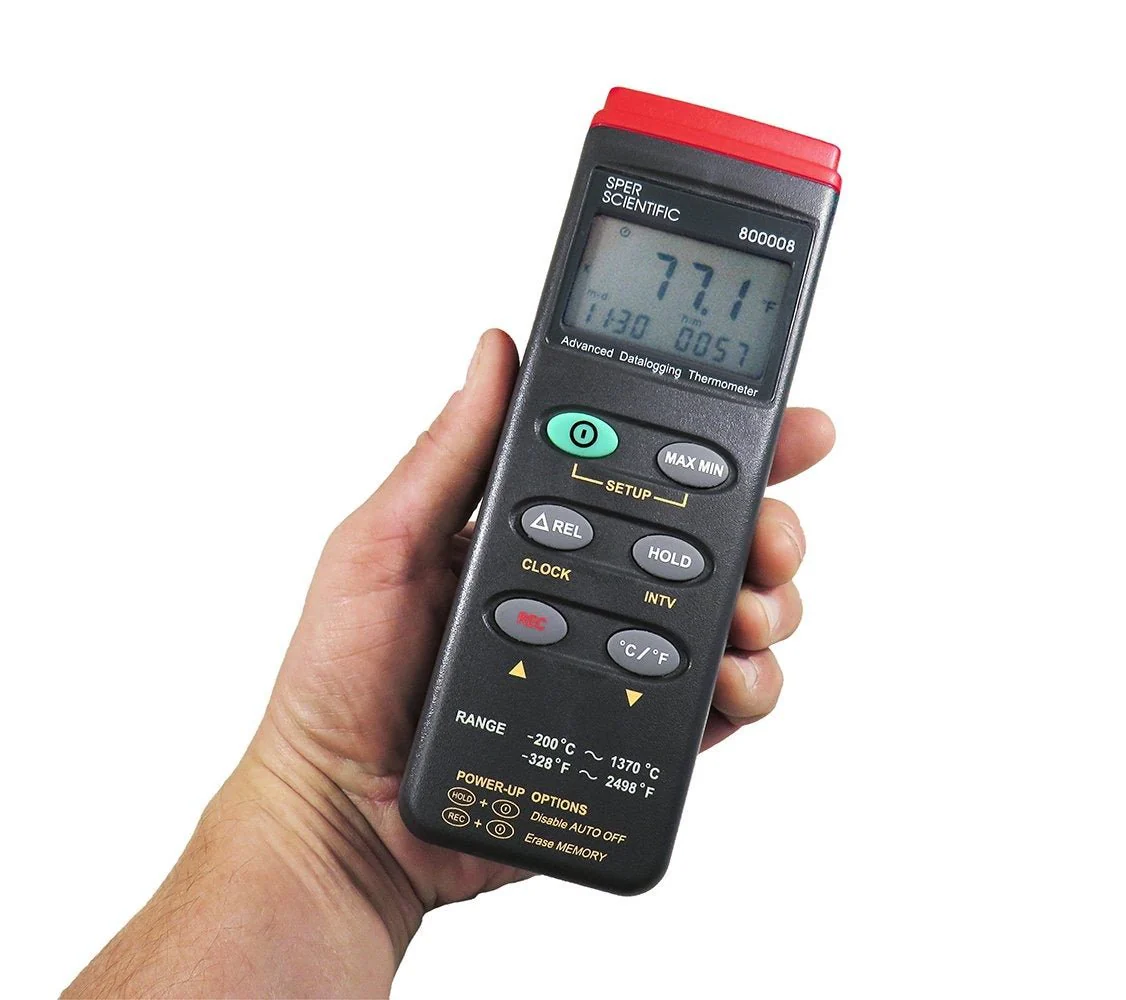

This well-made unit is extremely accurate and has fast response times. Has a large easy to read 3½" LCD screen and accepts any Type K thermocouple probe. Comes ready to use in a protective foam-lined carrying case complete with free downloadable software, RS232 computer cable (adapter cable also available), beaded wire probe (Ambient Type K probe 800077), and a 9V battery. Can also be used with optional AC Adapter (800003).
N.I.S.T. traceable Certificate of Calibration available.
Dimensions: 7¼" × 2½" × 1¼" (184 × 64 × 32 mm) Weight: 7.4 oz (210 g)
|
Temperature Coefficient: For ambient temperatures from 0°C to 18°C and 28°C to 50°C, for each °C ambient below 18°C or above 28°C add the following tolerance into the accuracy spec: 0.01% of reading + 0.03°C (0.01% of reading + 0.06°F) |
Downloads
Thermolink Software:
Windows (10mb zip file)
