Description

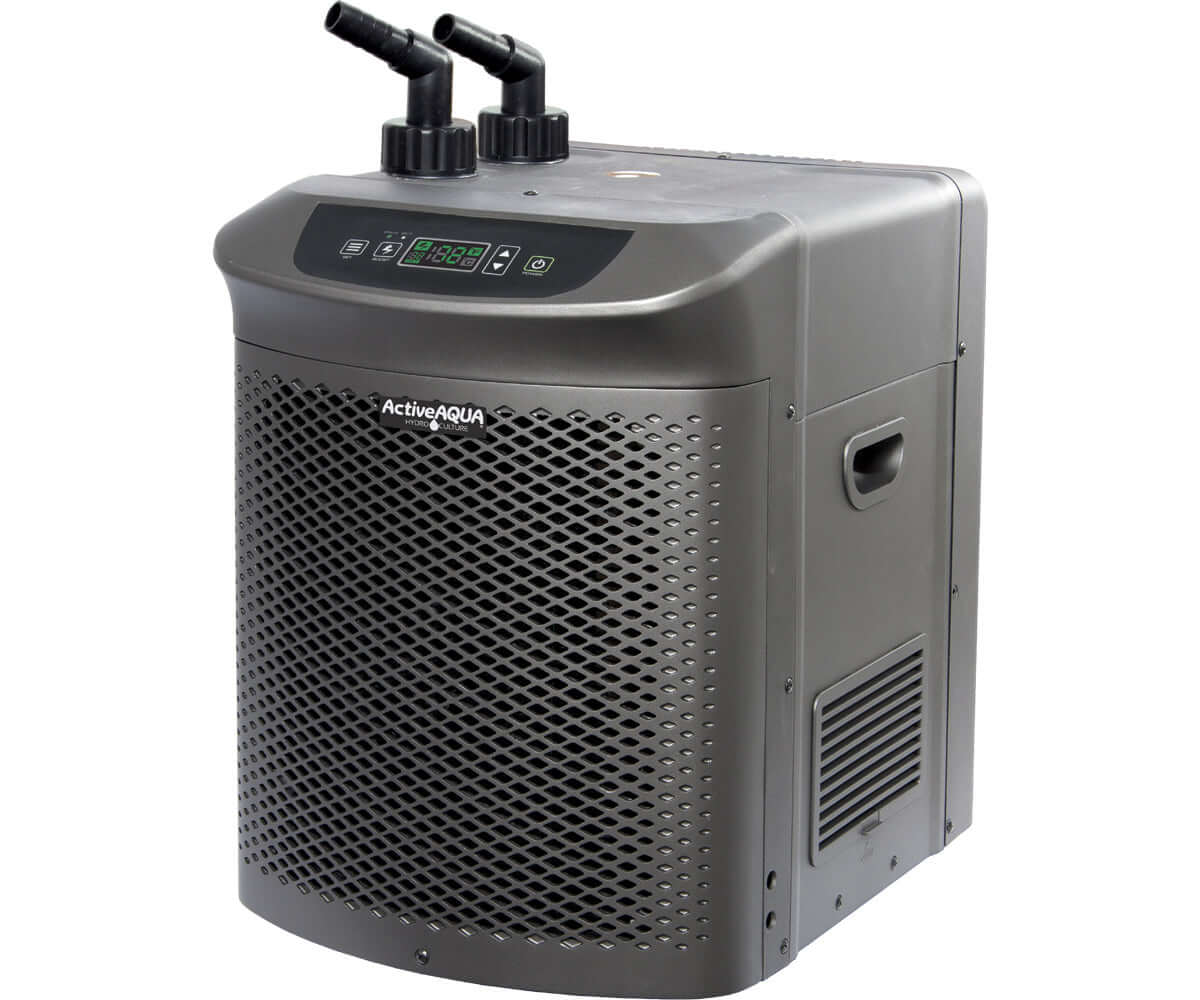

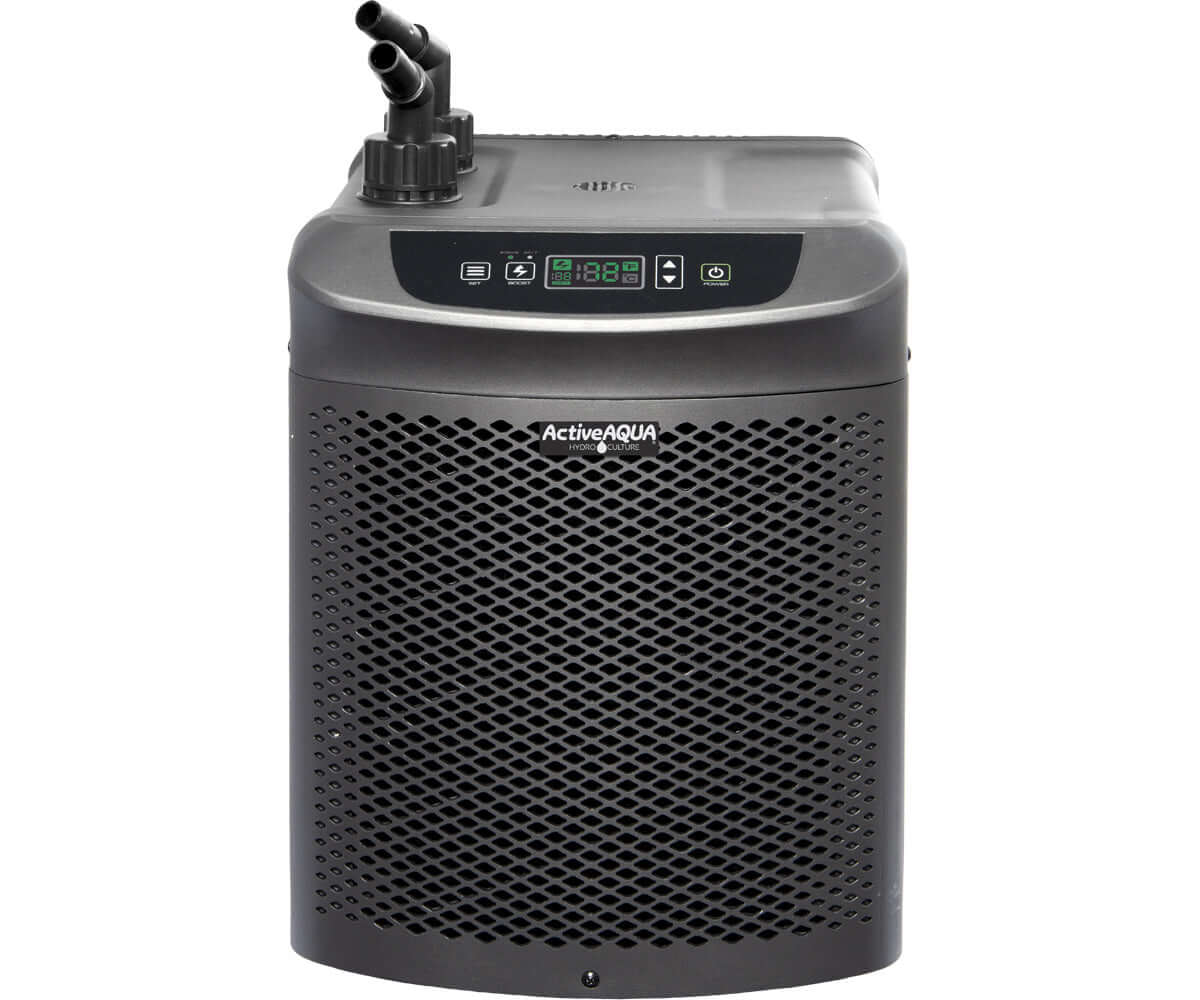

Environmentally Friendly Chillers: Active Aqua's chillers are not only ideal for maintaining the optimal temperature in your reservoir's nutrient solution but also environmentally friendly, using R134a refrigerant. The user-friendly temperature system lets you manage your desired temperature range as needed. Plus, all models now come with a boost function for faster chilling and quicker establishment of the initial nutrient solution temperature.

Features:

Large Refrigeration Capacity: These chillers can handle large volumes effortlessly. The recommended volume for a single unit sits between 90 and 172 gallons.

Pure Titanium Evaporator: The built-in evaporator, made from pure titanium, is anti-corrosive and suitable for use with both fresh and salt water.

Rate of Flow: The chillers operate at a 1/2 HP rating, producing a flow rate of approximately 211 to 1585 gallons per hour.

Rated BTU Per Hour: The chillers are extremely efficient and provide a rating of 4,020 BTU per hour.

PSI Rating: The maximum PSI rating of the chillers is 10 psi.

Recommended Pumps: For optimal performance, it is recommended to use the chillers alongside either the AAPW800, the AAPW1000, or the AAPC1010 pumps.

Included Fittings: The chillers come with 1/2", 3/4", and 1" fittings as standard.

Dimensions: The dimensions of a single unit are 19"L x 14"W x 19"H.

Cooling Capability: For additional details on cooling capabilities, please refer to the performance chart found in the product information tab. Note that the units are not certified for usage with central/house plumbing systems.

Note: The initial ambient temperature of your solution will always affect the duration of the initial chilling process.

Indoor Use Only: The chillers are approved for indoor use only.

Specifications

Length: 21.06 Inches

Height: 22.24 Inches

Width: 19.29 Inches

Weight: 57.3 Lbs

Unit: Each

Prop 65: TRUE

Wire Gauge (AWG): 18AWG/3 CORE

Rated Amperage (A): 5.4

Rated BTU Per Hour: 4020

Rated Wattage: 510

Frequency: 60

Voltage: 120

ETL Registration: 4006823
