AC Infinity MULTIFAN S7, Quiet USB Cooling Fan, Dual 120mm

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

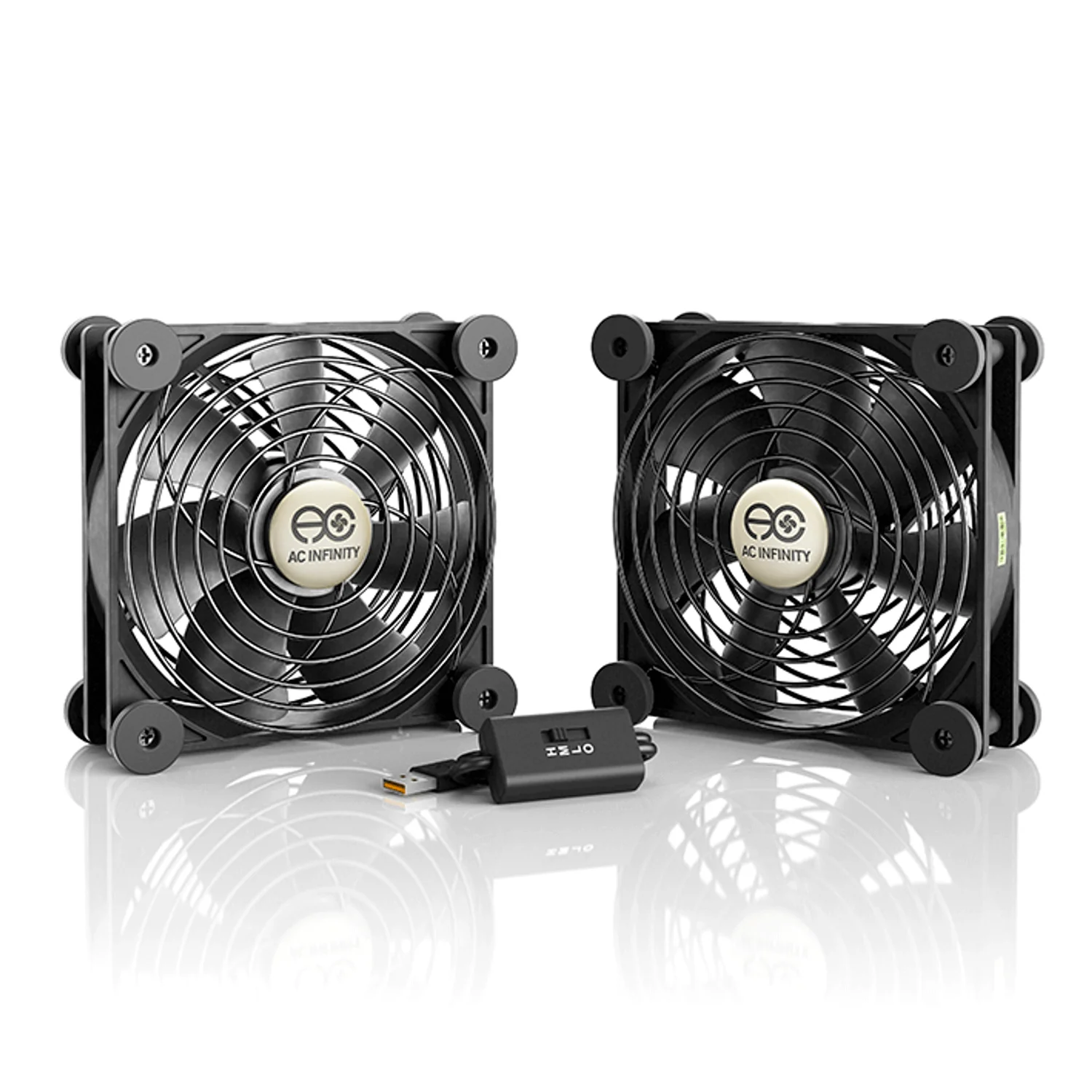

AC Infinity MULTIFAN S7, Quiet USB Cooling Fan, Dual 120mm

AC Infinity MULTIFAN S7, Quiet USB Cooling Fan, Dual 120mm

Description

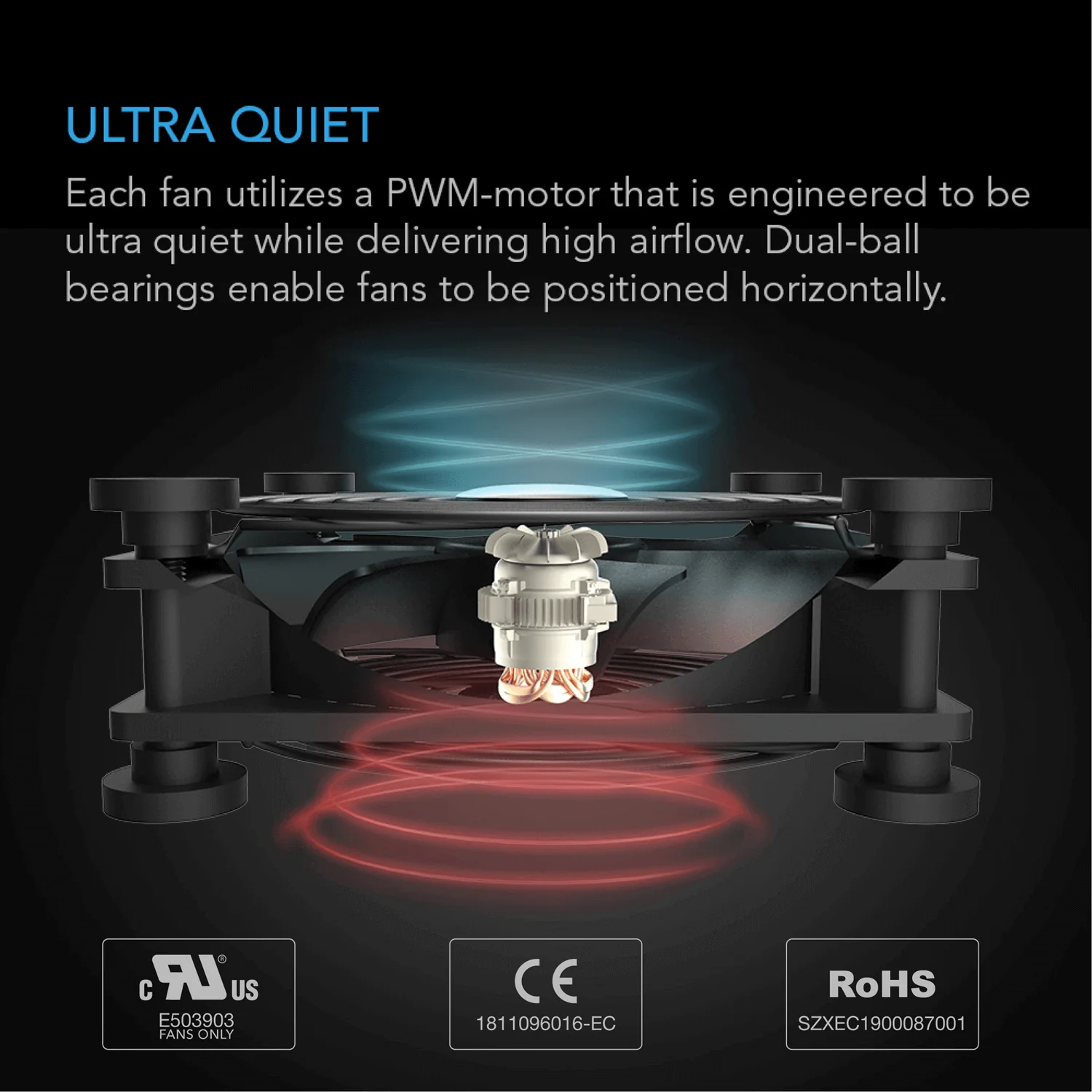

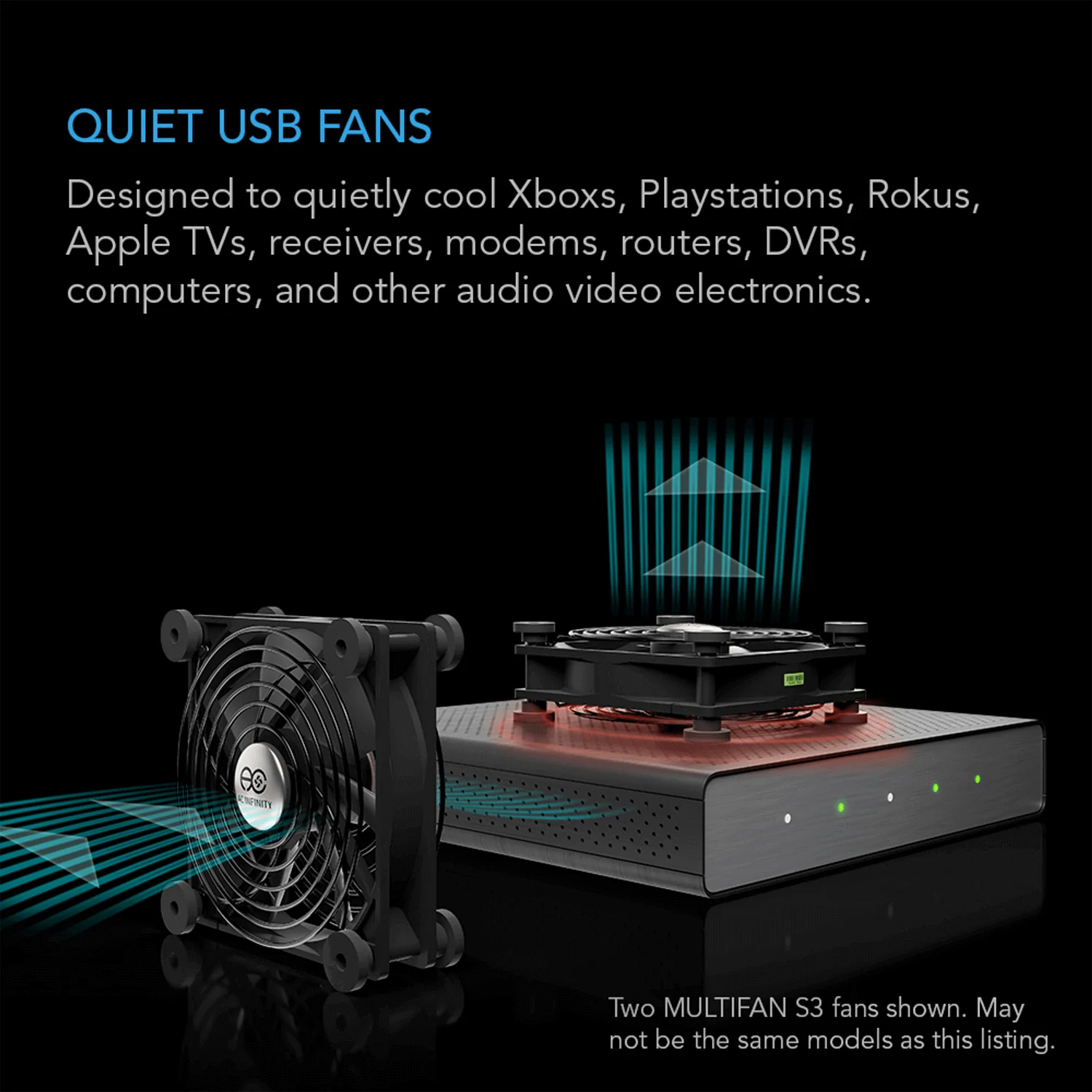

  • Ultra-quiet UL-certified USB Fans: These fans are designed to cool a variety of electronics and components. They come with a multi-speed controller to set the fan’s speed to optimal noise and airflow levels. The fans are bolstered with dual-ball bearings allowing for a lifespan of 67,000 hours and permitting the fans to be laid flat or stand upright. Power supply is through USB ports, commonly found in AV electronics and gaming consoles.

  • Product Details: Each fan measures 4.7 x 4.7 x 1 inches, with a total airflow go 104 CFM and noise level around 19 dBA. The two fans are permanently connected, sharing a 2.5 feet cord and a multi-speed controller for managing speed, depending upon the noise and airflow levels. Each unit also contains an additional USB port, enabling up to four fans to share the same power source.

  • Quality Certification: The fan system boasts of a CE and RoHS certification and contains premium dual-ball bearings. This makes it possible for the fan system to be mounted either horizontally or vertically. The fans used are AC Infinity axial fans ACX-FD1225(B)05W5, approved for safety under the UL-507 standards as certified by Underwriters Laboratories.

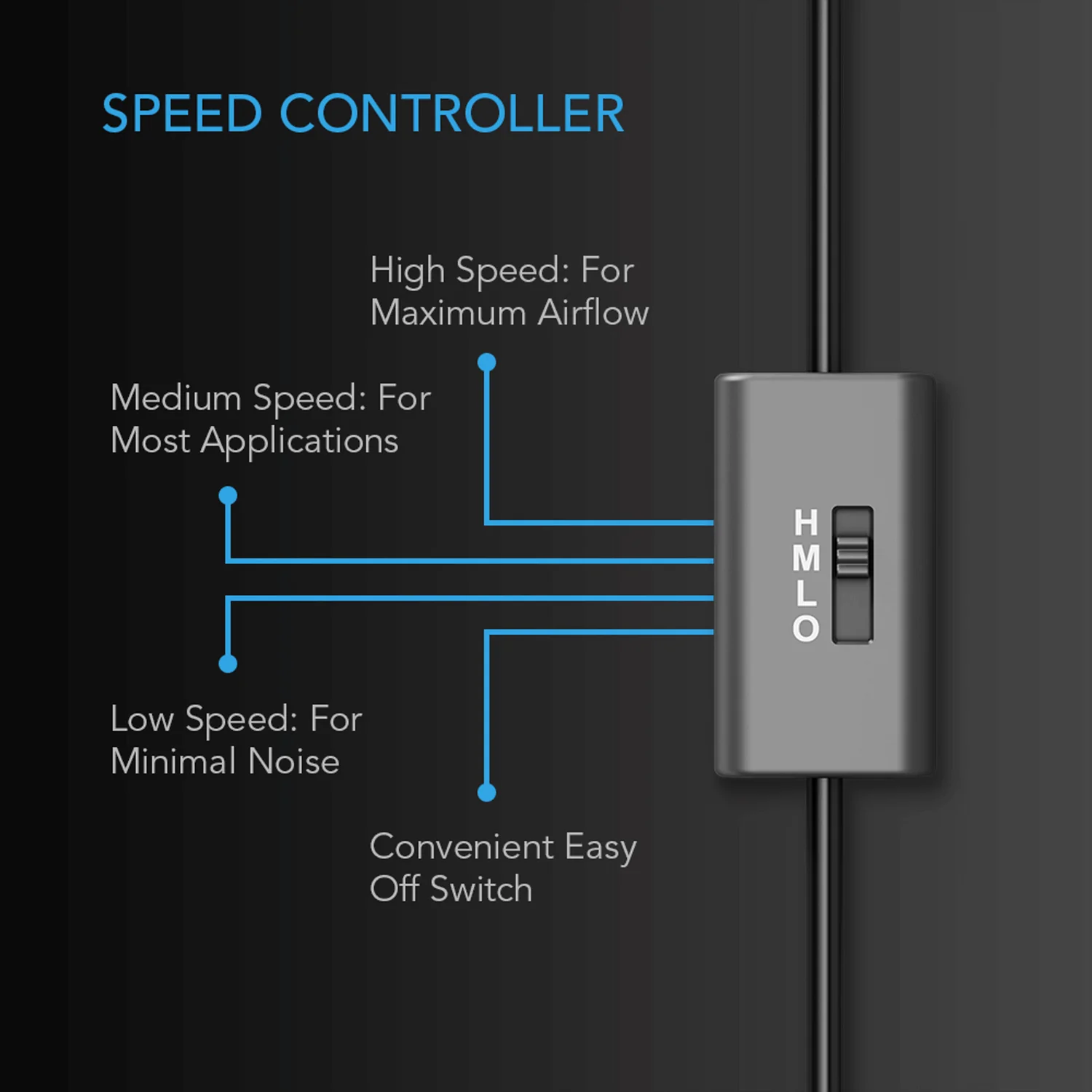

  • Speed Controller: The provided in-line multi-speed controller with power switch allows the user to set the fan’s speed for different noise and airflow levels, matching various environments.

  • Connecting Additional Units: For equipment that requires a higher airflow, each fan unit can chain additional fans from the MULTIFAN S series. Four fans can share the same USB power source and six fans can share the same thermal controller (sold separately).

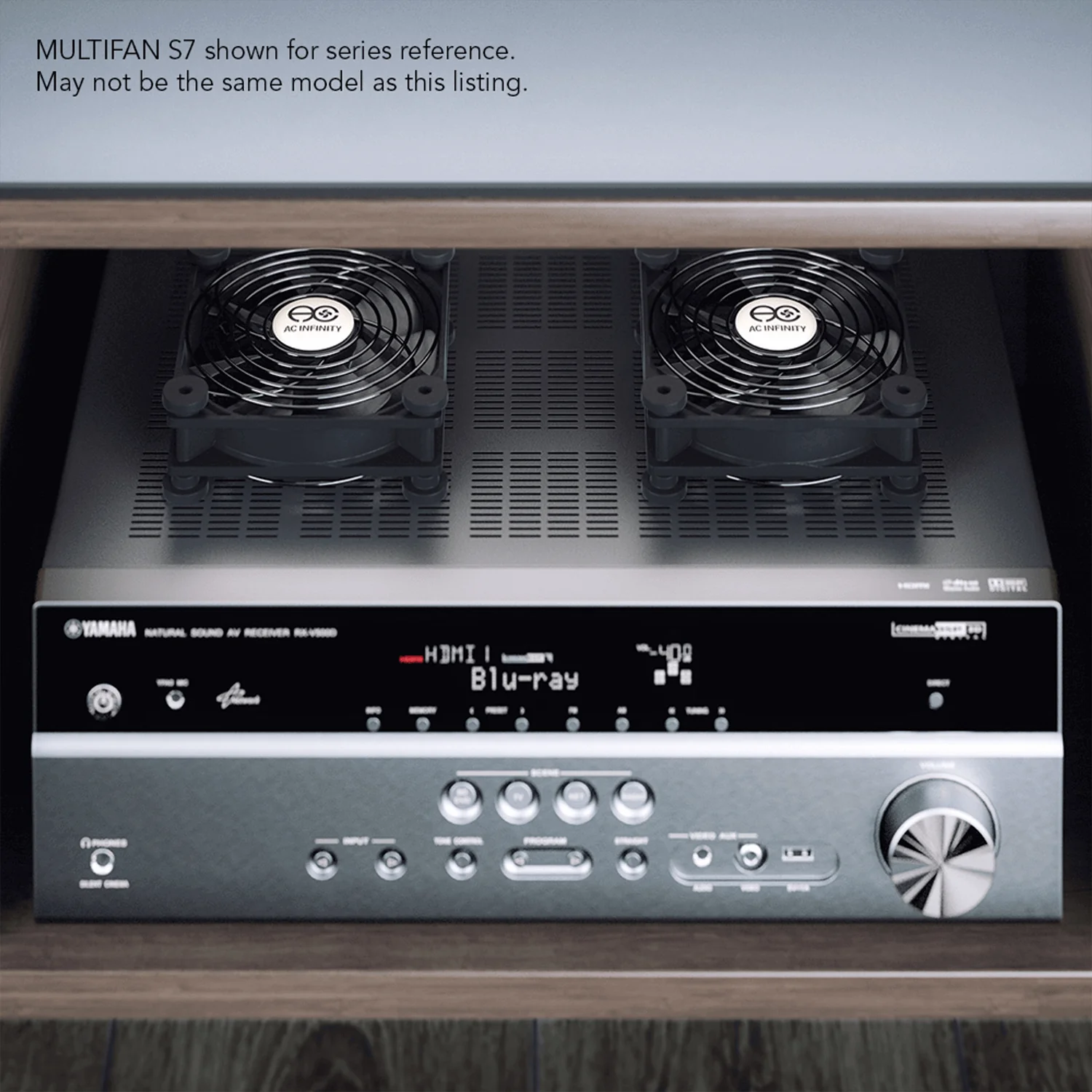

  • Applications: The fans are popularly used in a variety of electronics and components such as DVRs, computers, amplifiers, and other audio video equipment.

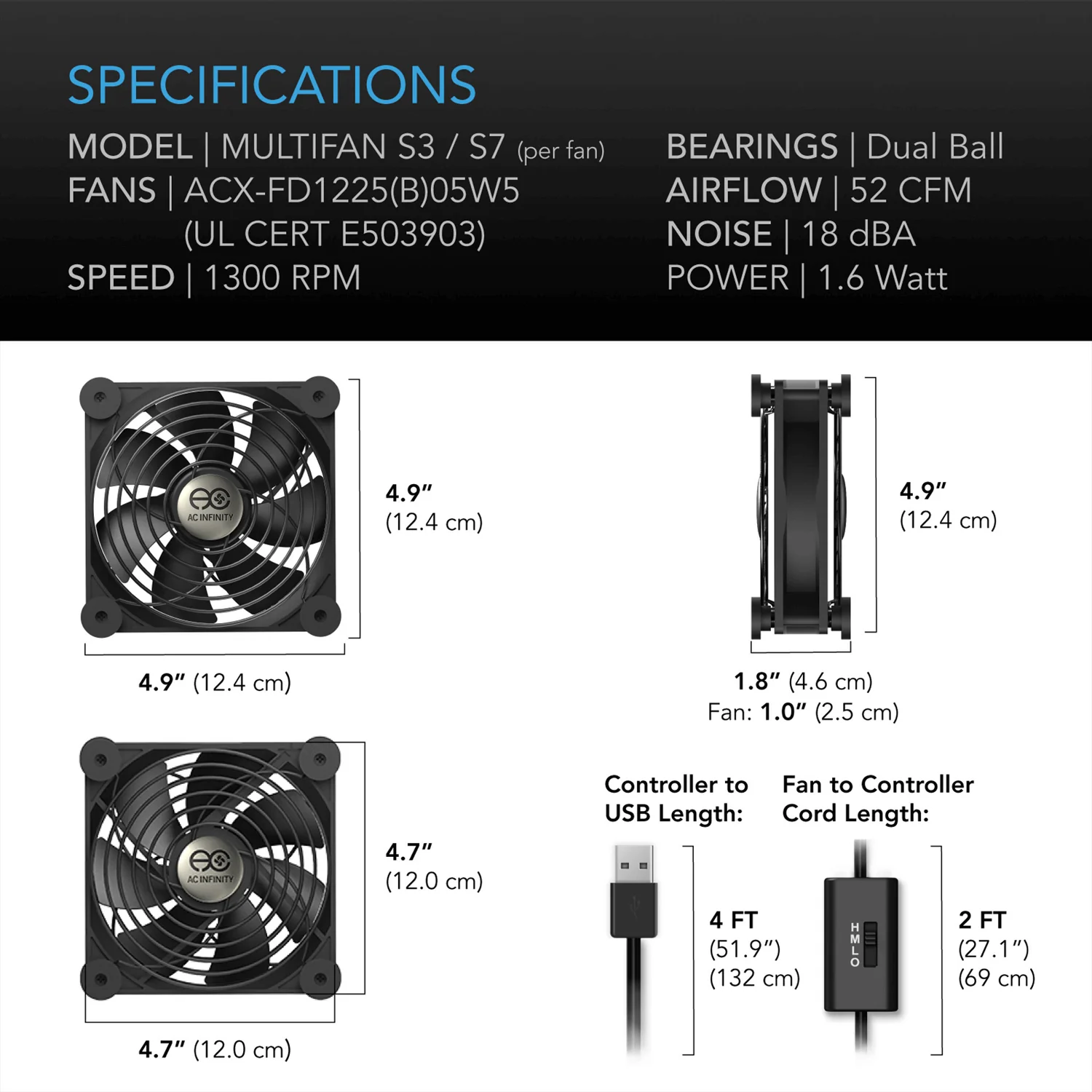

    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: MULTIFAN S7
  • Product Model: AI-MPF120A2
  • UPC Code: 854759004341

  • Product Dimensions
  • Total Dimensions - Per Fan: 4.7 x 4.7 x 1.0 in
  • Hole to Hole Distance: 4.14 x 4.14 in
  • Screw Hole Size: Diameter 0.17 in
  • Cord Length Between Fans: 30 in (2.5 feet)
  • Power Cord Length: 72 in (6 feet)

  • Product Performance and Technical Specs
  • Total Airflow: 104 CFM
  • Total Noise: 19 dBA
  • Speed: 1300 RPM
  • Operating Voltage: 3 to 7V DC
  • Power: 2.9 W
  • Current: 0.58 A
  • Wall Adapter Input: 100 to 240V AC
  • Static Pressure: 1 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 158°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
  • Download the RoHS Certification: here
  • Download the UL Certification: here
  • Download the CE Certification: here
    • $13.80

    Original: $45.99

    -70%
    AC Infinity MULTIFAN S7, Quiet USB Cooling Fan, Dual 120mm—

    $45.99

    $13.80

    Product Information

    Shipping & Returns

    Description

    Description
  • Ultra-quiet UL-certified USB Fans: These fans are designed to cool a variety of electronics and components. They come with a multi-speed controller to set the fan’s speed to optimal noise and airflow levels. The fans are bolstered with dual-ball bearings allowing for a lifespan of 67,000 hours and permitting the fans to be laid flat or stand upright. Power supply is through USB ports, commonly found in AV electronics and gaming consoles.

  • Product Details: Each fan measures 4.7 x 4.7 x 1 inches, with a total airflow go 104 CFM and noise level around 19 dBA. The two fans are permanently connected, sharing a 2.5 feet cord and a multi-speed controller for managing speed, depending upon the noise and airflow levels. Each unit also contains an additional USB port, enabling up to four fans to share the same power source.

  • Quality Certification: The fan system boasts of a CE and RoHS certification and contains premium dual-ball bearings. This makes it possible for the fan system to be mounted either horizontally or vertically. The fans used are AC Infinity axial fans ACX-FD1225(B)05W5, approved for safety under the UL-507 standards as certified by Underwriters Laboratories.

  • Speed Controller: The provided in-line multi-speed controller with power switch allows the user to set the fan’s speed for different noise and airflow levels, matching various environments.

  • Connecting Additional Units: For equipment that requires a higher airflow, each fan unit can chain additional fans from the MULTIFAN S series. Four fans can share the same USB power source and six fans can share the same thermal controller (sold separately).

  • Applications: The fans are popularly used in a variety of electronics and components such as DVRs, computers, amplifiers, and other audio video equipment.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: MULTIFAN S7
  • Product Model: AI-MPF120A2
  • UPC Code: 854759004341

  • Product Dimensions
  • Total Dimensions - Per Fan: 4.7 x 4.7 x 1.0 in
  • Hole to Hole Distance: 4.14 x 4.14 in
  • Screw Hole Size: Diameter 0.17 in
  • Cord Length Between Fans: 30 in (2.5 feet)
  • Power Cord Length: 72 in (6 feet)

  • Product Performance and Technical Specs
  • Total Airflow: 104 CFM
  • Total Noise: 19 dBA
  • Speed: 1300 RPM
  • Operating Voltage: 3 to 7V DC
  • Power: 2.9 W
  • Current: 0.58 A
  • Wall Adapter Input: 100 to 240V AC
  • Static Pressure: 1 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 158°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
  • Download the RoHS Certification: here
  • Download the UL Certification: here
  • Download the CE Certification: here
