AC Infinity CONTROLLER 2, Intelligent Thermal Fan Controller, Single Zone

AC Infinity CONTROLLER 2, Intelligent Thermal Fan Controller, Single Zone

Description

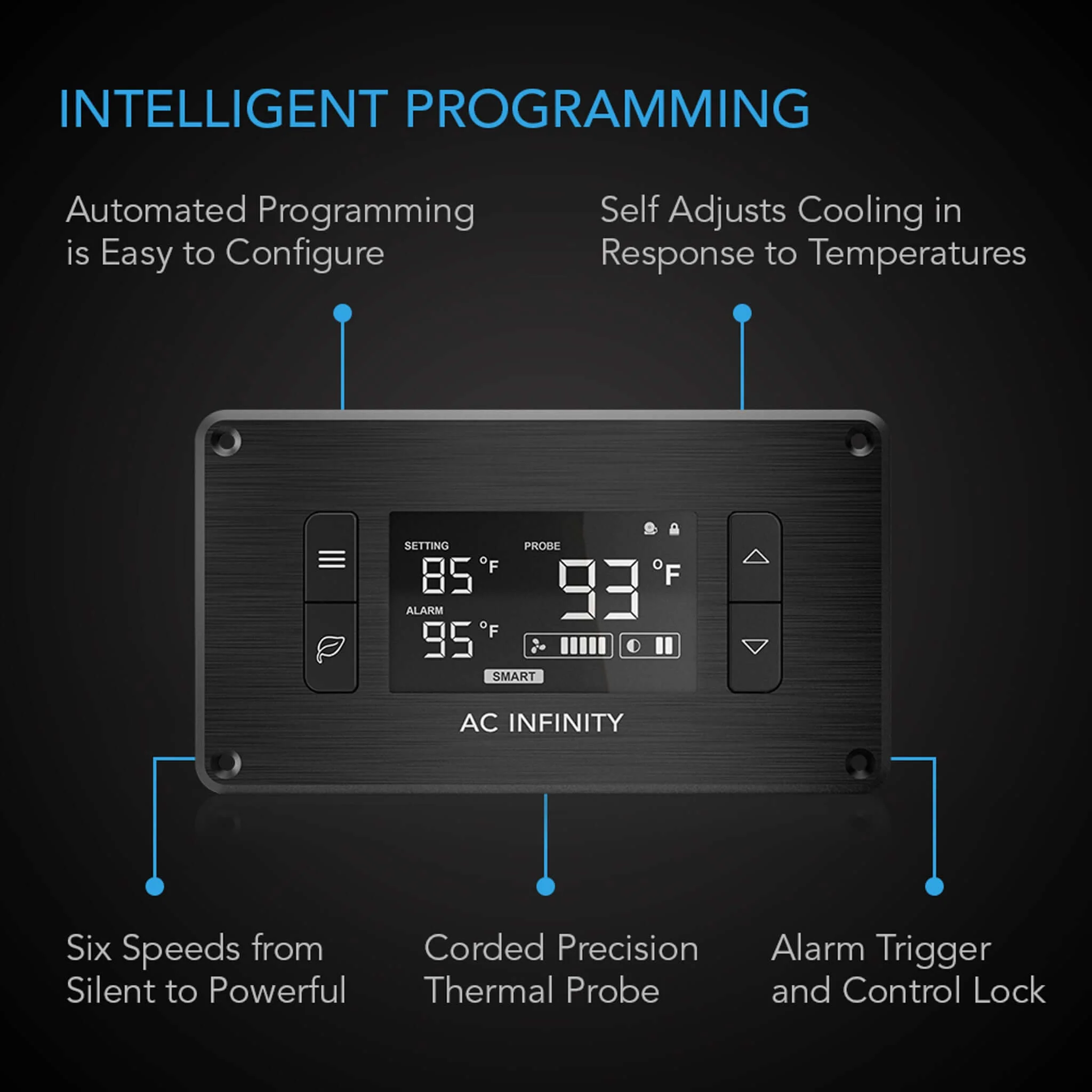

  • Intelligent Thermal Fan Controller: This smart fan controller features an on-board processor and a digital LCD display. It can control up to six AC Infinity Cabinet and USB Fans (please see additional details for compatibility). The system programs itself to adjust the cooling power in response to changing temperatures. It also includes beneficial features like an alarm system, display lock, six fan speeds, two buffer options, and power failure memory.

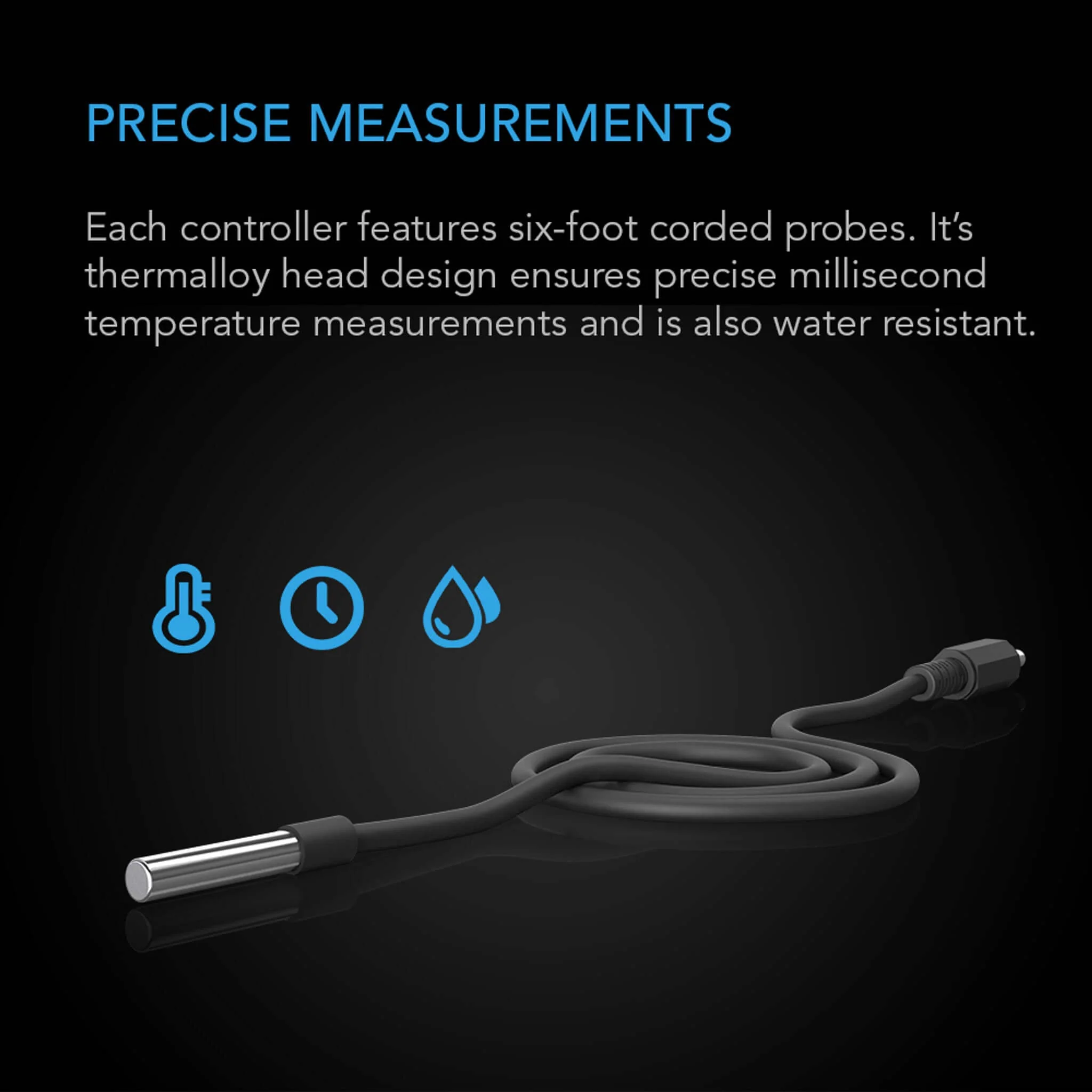

  • Product Features: The Controller 2 is designed to control AC Infinity AIRPLATE Series cabinet fans and MULTIFAN Series component fans. It measures 5.2 by 3.1 by 1.1 inches and includes a backlit LCD digital display that can show temperatures in both Fahrenheit and Celsius. The metal frame, featuring a brushed, anodized aluminum finish, can be mounted onto wall panels and cabinets up to 1.25 inches thick. It also has two USB fan ports, one power port, and one thermal probe port, along with a 6-foot precision water-resistant thermal probe. The operating temperature can be set between 32 and 140 degrees Fahrenheit.

  • Programming: This intelligent controller has an onboard processor with active temperature monitoring and programming. It automatically adjusts fan speed in response to varying temperatures. It also offers an alarm system, options for a display lock or turning off during running programs, six fan speeds, three backlight settings, two buffer options, and retains memory in case of a power failure.

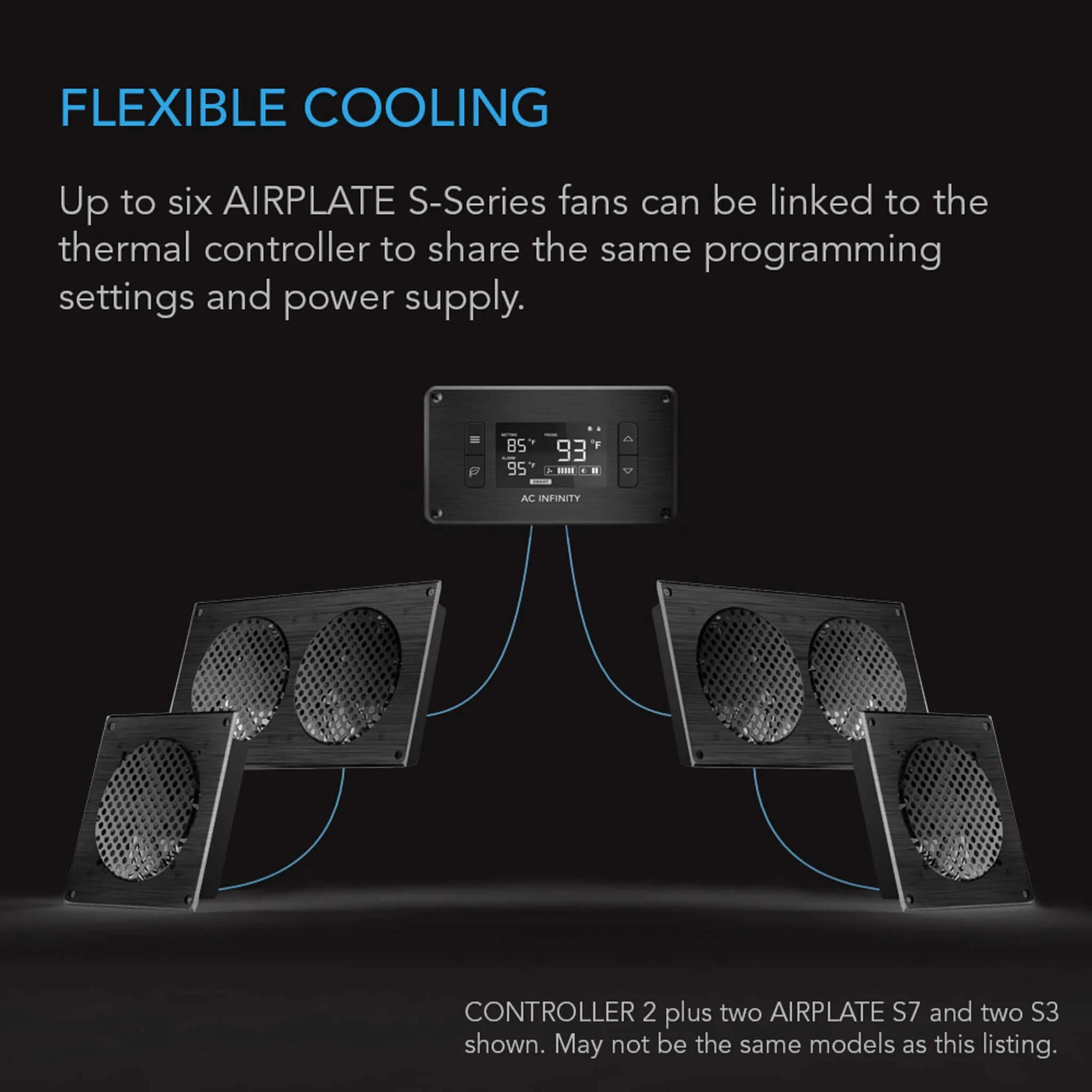

  • Compatibility: The Controller 2 can power up to 10 watts of AC Infinity AIRPLATE and MULTIFAN Series fans, which amounts to approximately six fans. However, note that some models have more than one fan. For instance, dual fan systems such as the AIRPLATE S7 or MULTIFAN S5 contain two fans. Consequently, this controller could power up to three of these models, totaling six fans. Other 5V USB fans may be compatible but may not fully function with the speed control feature.

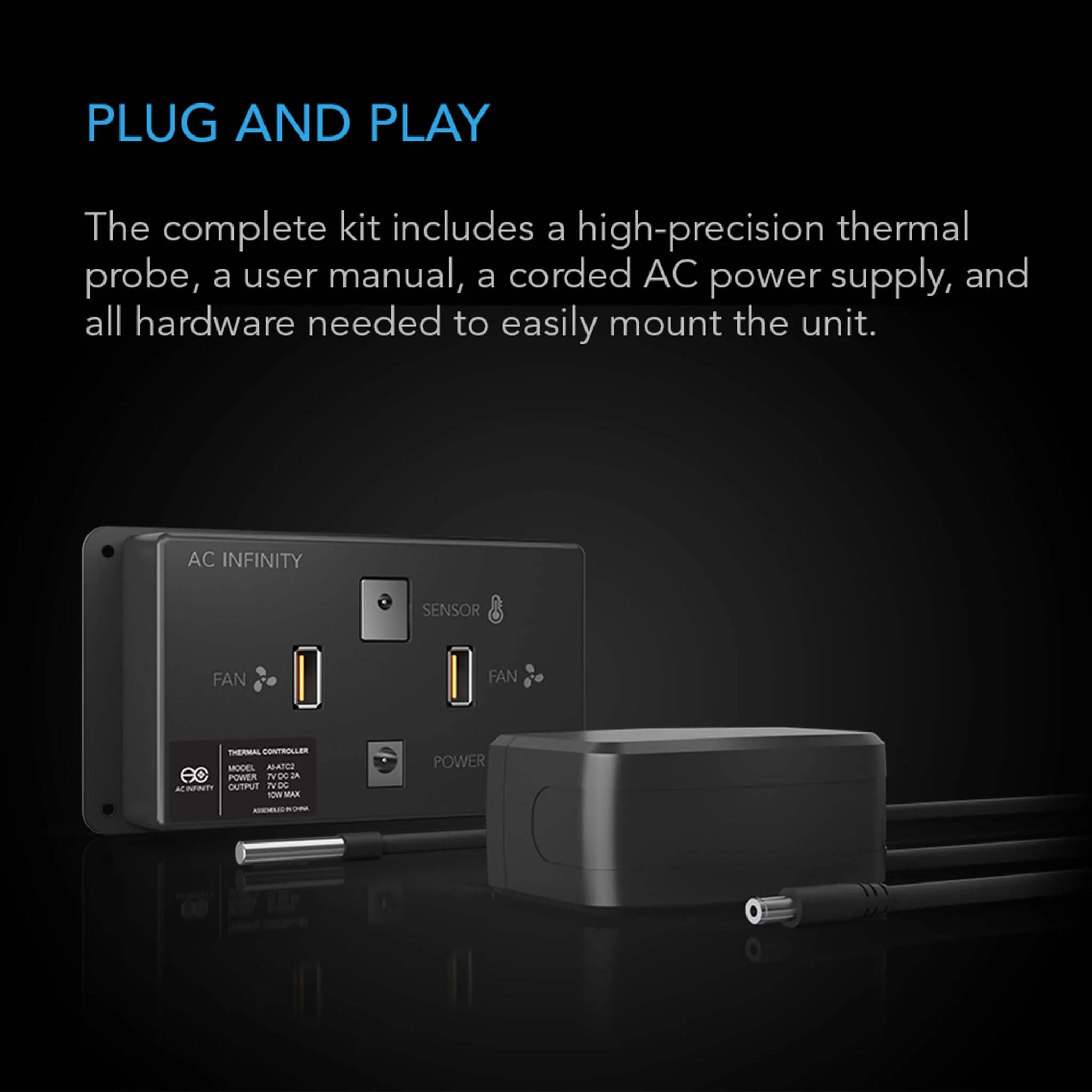

  • Package Includes: This complete kit comes inclusive of the thermal controller, mounting screws, plastic stencil, instruction manual, and a 100-125V AC wall adapter.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: Standard Thermal Controller
  • Product Model: AI-ATC
  • UPC Code: 854759004402

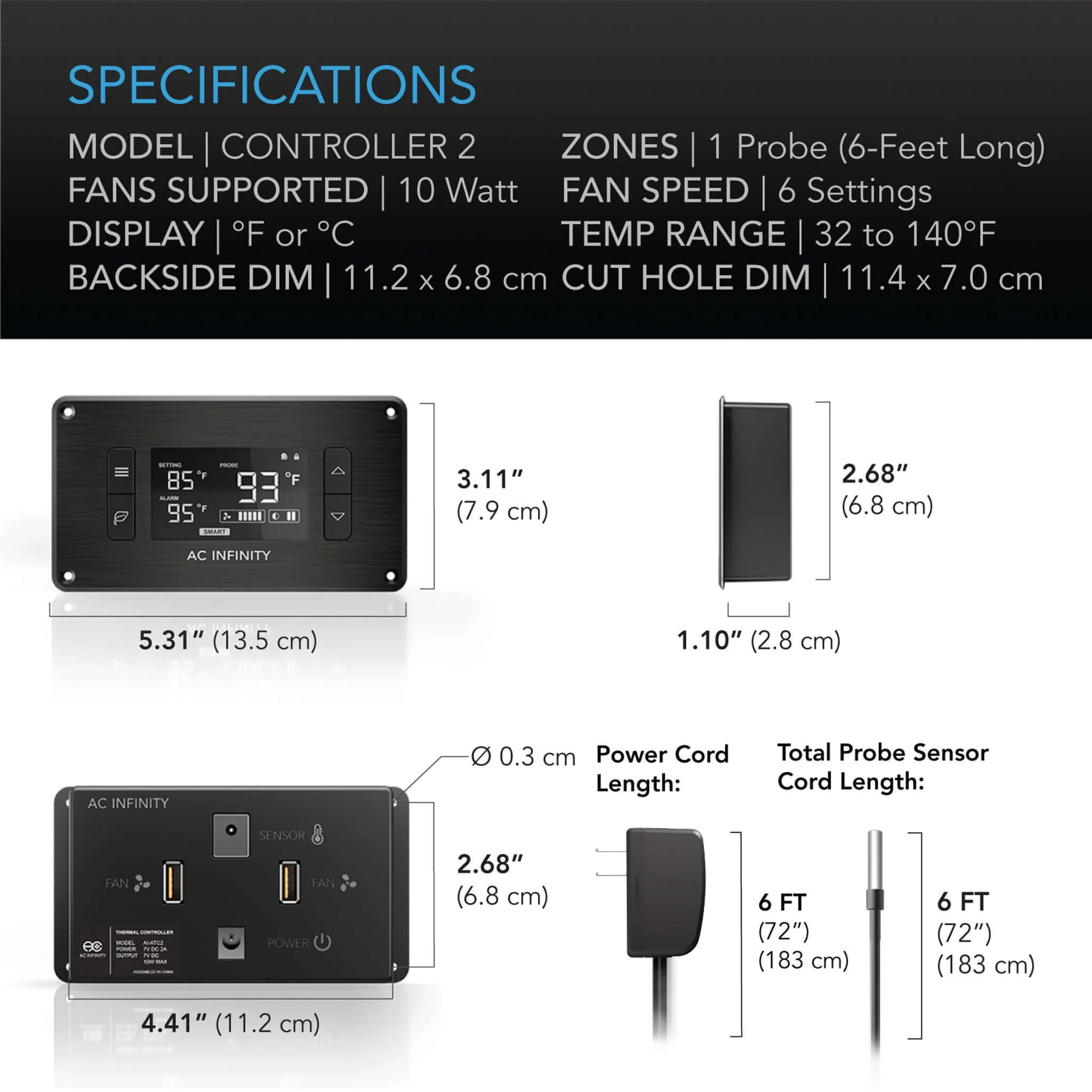

  • Product and Mounting Dimensions
  • Total Dimensions: 5.31 x 3.11 x 1.10 in. (13.5 x 7.9 x 2.8 cm)
  • Backside Enclosure Dimensions: 4.41 x 2.68 in. (11.2 x 6.8 cm)
  • Required Mounting Hole: 4.48 x 2.76 in. (11.4 x 7.0 cm)
  • Hole to Hole Distance: 4.72 x 2.64 in. (12.0 x 6.7 cm)
  • Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)
  • Display Size: 2.25 x 1.25 in. (4.7 x 3.2 cm)
  • Cord Length: 72 in. (6 feet)
  • Thermal Probe Length: 72 in. (6 feet)

  • Product Performance and Technical Specs
  • Maximum Fans Controlled: 6
  • Max Power Supported: 10 W
  • Programming Temperatures: 32 to 140°F (0 to 60°C)
  • Operating Voltage: 3 to 7V DC
  • Power: 10 W
  • Current: 2 A
  • Wall Adapter Input: 100 to 240V AC
  • Operating Humidity: 35 to 85% RH
    • $16.80

    Original: $55.99

    -70%
    AC Infinity CONTROLLER 2, Intelligent Thermal Fan Controller, Single Zone—

    $55.99

    $16.80

    Product Information

    Shipping & Returns

    Description

    Description
  • Intelligent Thermal Fan Controller: This smart fan controller features an on-board processor and a digital LCD display. It can control up to six AC Infinity Cabinet and USB Fans (please see additional details for compatibility). The system programs itself to adjust the cooling power in response to changing temperatures. It also includes beneficial features like an alarm system, display lock, six fan speeds, two buffer options, and power failure memory.

  • Product Features: The Controller 2 is designed to control AC Infinity AIRPLATE Series cabinet fans and MULTIFAN Series component fans. It measures 5.2 by 3.1 by 1.1 inches and includes a backlit LCD digital display that can show temperatures in both Fahrenheit and Celsius. The metal frame, featuring a brushed, anodized aluminum finish, can be mounted onto wall panels and cabinets up to 1.25 inches thick. It also has two USB fan ports, one power port, and one thermal probe port, along with a 6-foot precision water-resistant thermal probe. The operating temperature can be set between 32 and 140 degrees Fahrenheit.

  • Programming: This intelligent controller has an onboard processor with active temperature monitoring and programming. It automatically adjusts fan speed in response to varying temperatures. It also offers an alarm system, options for a display lock or turning off during running programs, six fan speeds, three backlight settings, two buffer options, and retains memory in case of a power failure.

  • Compatibility: The Controller 2 can power up to 10 watts of AC Infinity AIRPLATE and MULTIFAN Series fans, which amounts to approximately six fans. However, note that some models have more than one fan. For instance, dual fan systems such as the AIRPLATE S7 or MULTIFAN S5 contain two fans. Consequently, this controller could power up to three of these models, totaling six fans. Other 5V USB fans may be compatible but may not fully function with the speed control feature.

  • Package Includes: This complete kit comes inclusive of the thermal controller, mounting screws, plastic stencil, instruction manual, and a 100-125V AC wall adapter.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: Standard Thermal Controller
  • Product Model: AI-ATC
  • UPC Code: 854759004402

  • Product and Mounting Dimensions
  • Total Dimensions: 5.31 x 3.11 x 1.10 in. (13.5 x 7.9 x 2.8 cm)
  • Backside Enclosure Dimensions: 4.41 x 2.68 in. (11.2 x 6.8 cm)
  • Required Mounting Hole: 4.48 x 2.76 in. (11.4 x 7.0 cm)
  • Hole to Hole Distance: 4.72 x 2.64 in. (12.0 x 6.7 cm)
  • Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)
  • Display Size: 2.25 x 1.25 in. (4.7 x 3.2 cm)
  • Cord Length: 72 in. (6 feet)
  • Thermal Probe Length: 72 in. (6 feet)

  • Product Performance and Technical Specs
  • Maximum Fans Controlled: 6
  • Max Power Supported: 10 W
  • Programming Temperatures: 32 to 140°F (0 to 60°C)
  • Operating Voltage: 3 to 7V DC
  • Power: 10 W
  • Current: 2 A
  • Wall Adapter Input: 100 to 240V AC
  • Operating Humidity: 35 to 85% RH
