AC Infinity CLOUDWAY T12, Whole House EC Fan, 1600 CFM, Energy Efficient with Temperature Humidity Controller

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9

AC Infinity CLOUDWAY T12, Whole House EC Fan, 1600 CFM, Energy Efficient with Temperature Humidity Controller

AC Infinity CLOUDWAY T12, Whole House EC Fan, 1600 CFM, Energy Efficient with Temperature Humidity Controller

Description
  • Whole House Attic Fan: Specially designed for cooling and ventilating entire homes by eliminating hot air from indoor spaces. This system uses a smart digital controller with functions for temperature and humidity trigger programming, fan speed control, timers, and alerts. Also, it is equipped with an EC motor that's PWM-controlled, ensuring quieter and more energy-efficient operation than most comparable products.

  • Features: The fan system comes with 2-door shutters enhanced with a damper that blocks attic air from entering your living spaces when the fan is not in use. The duct size is 12 inches, and the unit has dimensions of 12.3 x 17.7 x 14.1 inches. It provides an airflow of 1604 CFM with a noise level of only 62 dBA. Dual ball bearings are used for durability and performance.

  • Product Description: This is a whole-house fan system designed to keep homes cool. It exhausts hot air from indoor spaces while creating a passive intake to bring in fresh air. The included LCD digital controller allows for smart thermostat control, fan speed setting, and status alerts. Each fan system comes with 4-layer ducting, stainless steel duct clamps and grille, and a 2-door shutter to prevent attic air from flowing into your house when the fan is not in use.

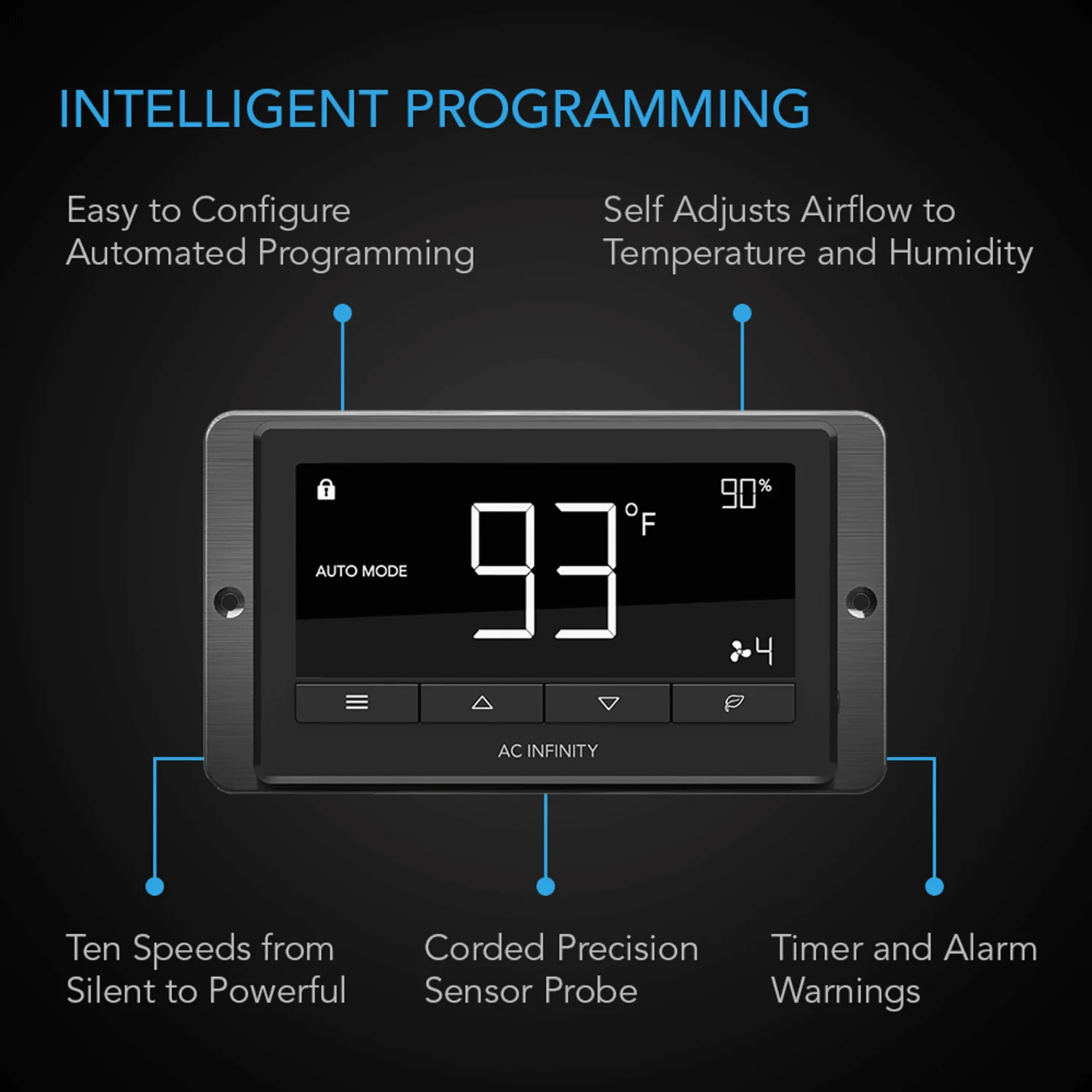

  • Intelligent Controller: Equipped with active temperature and humidity monitoring capabilities, the digital controller allows for customization of fan triggers based on house conditions. It can run continuously or on a timer for added convenience. The fan speed can be adjusted between 0 and 10 to suit your desired cooling level and noise preference. Plus, each smart controller includes a 12 ft. corded sensor probe for accurate detection of temperature and humidity levels. Additional features include an LCD screen energy-saving mode, backup memory, and alert notifications.

  • Efficient Performance: Thanks to the Pulse Width Modulation (PWM) controlled motor, this attic fan operates quietly and efficiently, consuming up to 95% less power compared to traditional air conditioners. The fan has a lifespan of 50,000 hours of continuous running time, facilitated by dual ball bearings that allow for omnidirectional mounting. It is IP-44 rated to withstand dust and moisture, making it perfect for the most humid environments. The built-in damper uses gravity-fed shutters that automatically close the opening when the fan is not in use, preventing any attic air from entering your spaces.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDWAY T12
  • Product Model: AC-CRT12
  • UPC Code: 819137021099

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 12"
  • Duct Tube Length: 5 ft.
  • Total Dimensions: 12.28 x 17.71 x 14.05 in. (31.2 x 45.0 x 35.7 cm)
  • Mounting Hole-To-Hole Distance: 7.00 x 7.12 in. (17.8 x 18.1 cm)
  • Screw Hole Size: Ø 0.462 in. (Ø 1.18 cm)
  • Cord Length to Controller: 240 in. (20 feet)
  • Cord Length to Plug: 96 in. (8 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
  • Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)
  • Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)
  • Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)
  • Sensor Probe Length: 144 in. (12 feet)

  • Product Performance and Technical Specs
  • Total Airflow: 1604 CFM
  • Total Noise: 62 dBA
  • Static Pressure: 818 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 250 W
  • Average Power Usage: 139 W
  • Current: 2.5 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
  • Fan Quality Approvals: CE, RoHS
    • Data Sheets
  • Download the product manual: here
  • Download the CE Certification: here
  • Download the RoHS Certification: here
