AC Infinity CLOUDLINE S6, Quiet Inline Duct Fan System with Speed Controller, 6-Inch

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

AC Infinity CLOUDLINE S6, Quiet Inline Duct Fan System with Speed Controller, 6-Inch

AC Infinity CLOUDLINE S6, Quiet Inline Duct Fan System with Speed Controller, 6-Inch

Description
  • Smart Inline Duct Fan: This fan is designed to quietly ventilate grow tents, boost heating/cooling to rooms, circulate fresh air, and cool AV closets. It features a wired 10-speed controller and is also compatible with all UIS controllers with intelligent programming.

  • PWM-Controlled EC Motor: The inline fan has a PWM-controlled EC motor that provides quiet, energy-efficient performance with minimal heat and noise. The mixed flow design, featuring a stator blade and hydrodynamic wind circles, maintains airflow delivery even in high resistance areas. The measurements for the fan are as follows: Duct Size: 6”, Dimensions: 7.9 x 12.6 x 8.4 inches, Airflow: 402 CFM, Noise: 32 dBA.

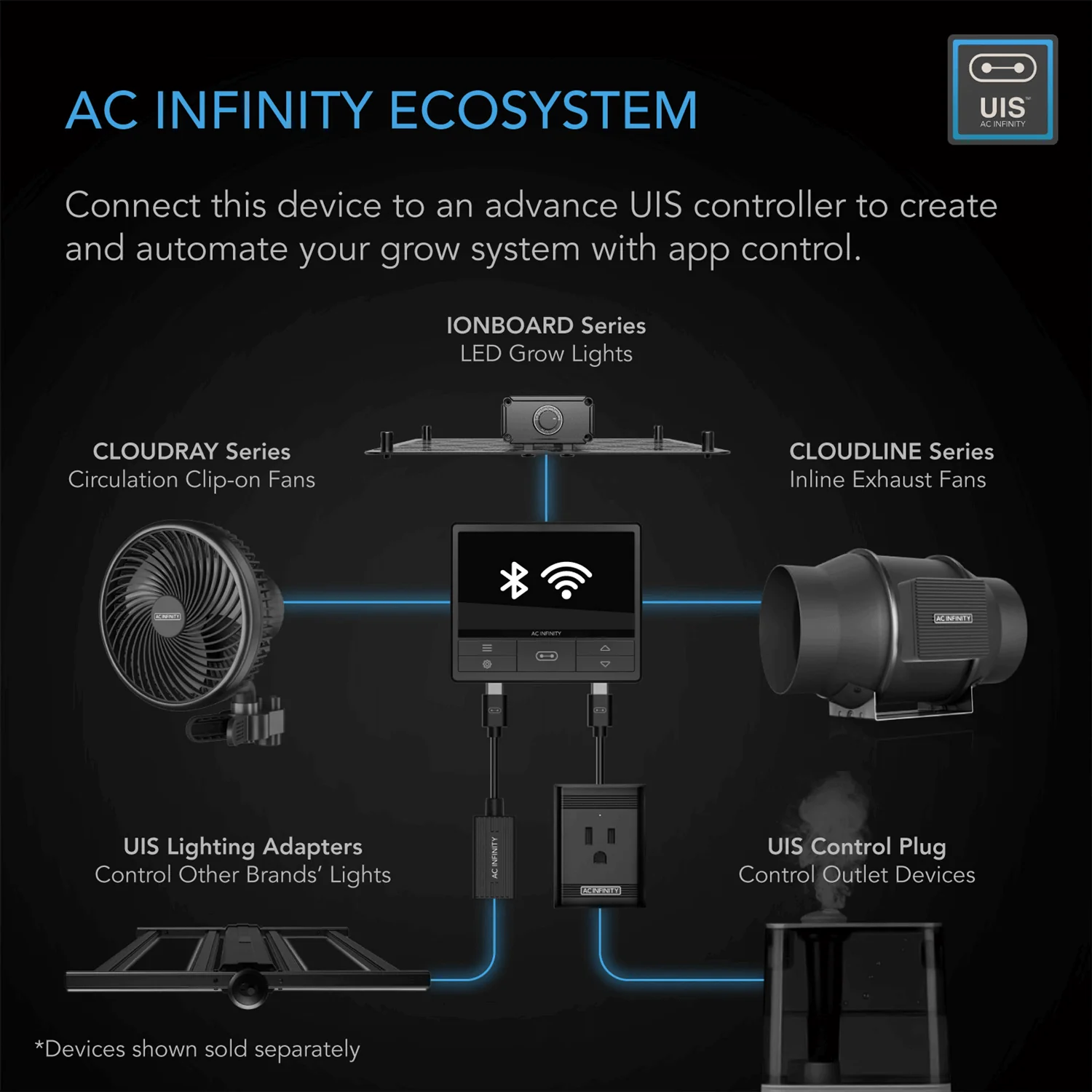

  • Smart Controller: The fan includes a smart controller with dynamic climate and time-based programming capabilities. It can also connect to multiple UIS devices for optimal control. This product is developed as part of the UIS™ platform of smart controllers and devices aimed at creating your ideal environment.

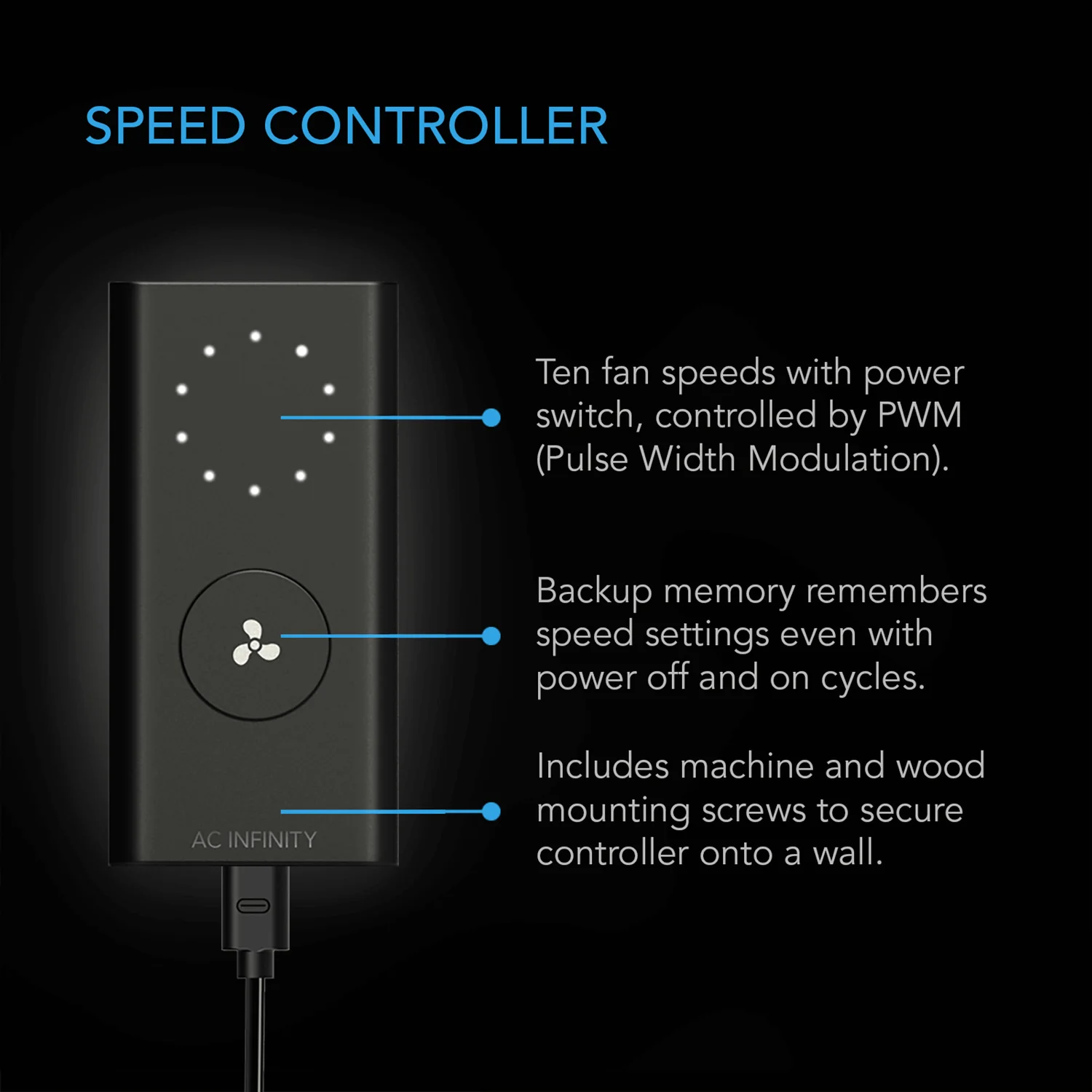

  • Precise Speed Controller: The speed controller allows you to set the duct fan’s speed between ten speed levels, thus achieving optimal noise and airflow levels in various environments.

  • Quiet and Energy-Efficient Design: The duct fan's design incorporates a stator blade and dual hydrodynamic wind circles, enabling it to deliver sturdy airflow even in applications where air movement is restricted. The motor houses dual ball bearings rated at 67,000 hours, permitting the duct fan unit to be mounted in any direction. Moreover, the unit is IP44 rated, proving its resistance to dust and liquids, which enables it to perform exceedingly well, even in harsh environments.

  • Wide Application: This duct fan system, popular due to its low noise and advanced control features, finds use in a variety of applications, including in cooling AV equipment rooms, closets, racks, and cabinets. Furthermore, due to its superior air circulation and ventilation capabilities, it's also employed in exhausting bathrooms and attics, among other installations.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDLINE S6
  • Product Model: AI-CLS6
  • UPC Code: 819137020306

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 6"
  • Total Dimensions: 7.87 x 12.6 x 8.35 in. (20 x 32 x 21 cm)
  • Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8 x 6 cm)
  • Screw Hole Size: Ø 0.236 in. (Ø 0.6 cm)
  • Cord Length to Controller: 120 in. (10 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)

  • Product Performance and Technical Specs
  • Total Airflow: 402 CFM
  • Total Noise: 32 dBA
  • Static Pressure: 503 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 70 W
  • Average Power Usage: 38 W
  • Current: 0.94 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
  • Download the IC Certification: here
  • Download the RoHS Certification: here
  • Download the ETL Certification: here
  • Download the SAA Certification: here
  • Download the CE Certification: here
    • $124.99
