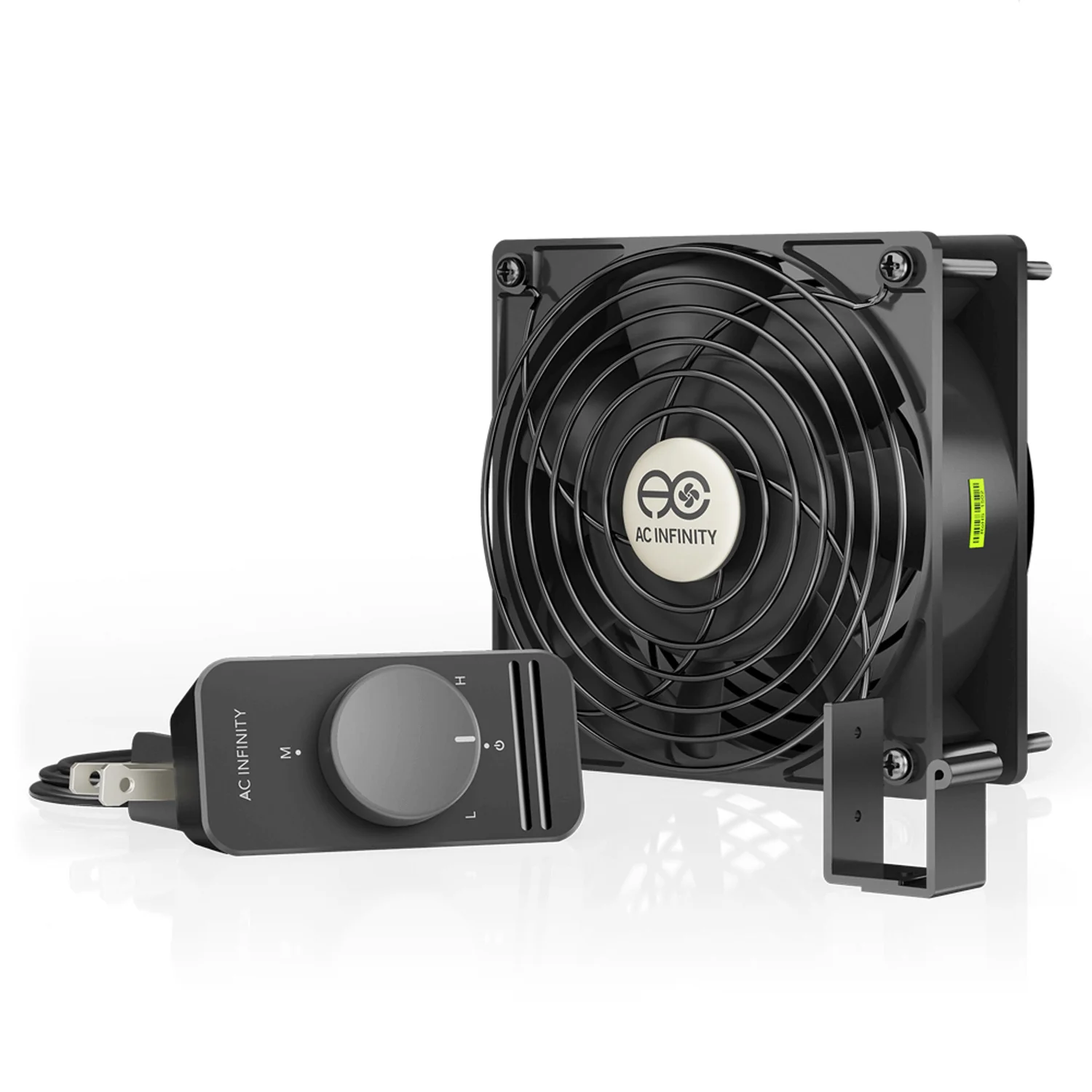

AC Infinity AXIAL S1238, Muffin 120V AC Cooling Fan, 120mm x 120mm x 38mm

AC Infinity AXIAL S1238, Muffin 120V AC Cooling Fan, 120mm x 120mm x 38mm

Description

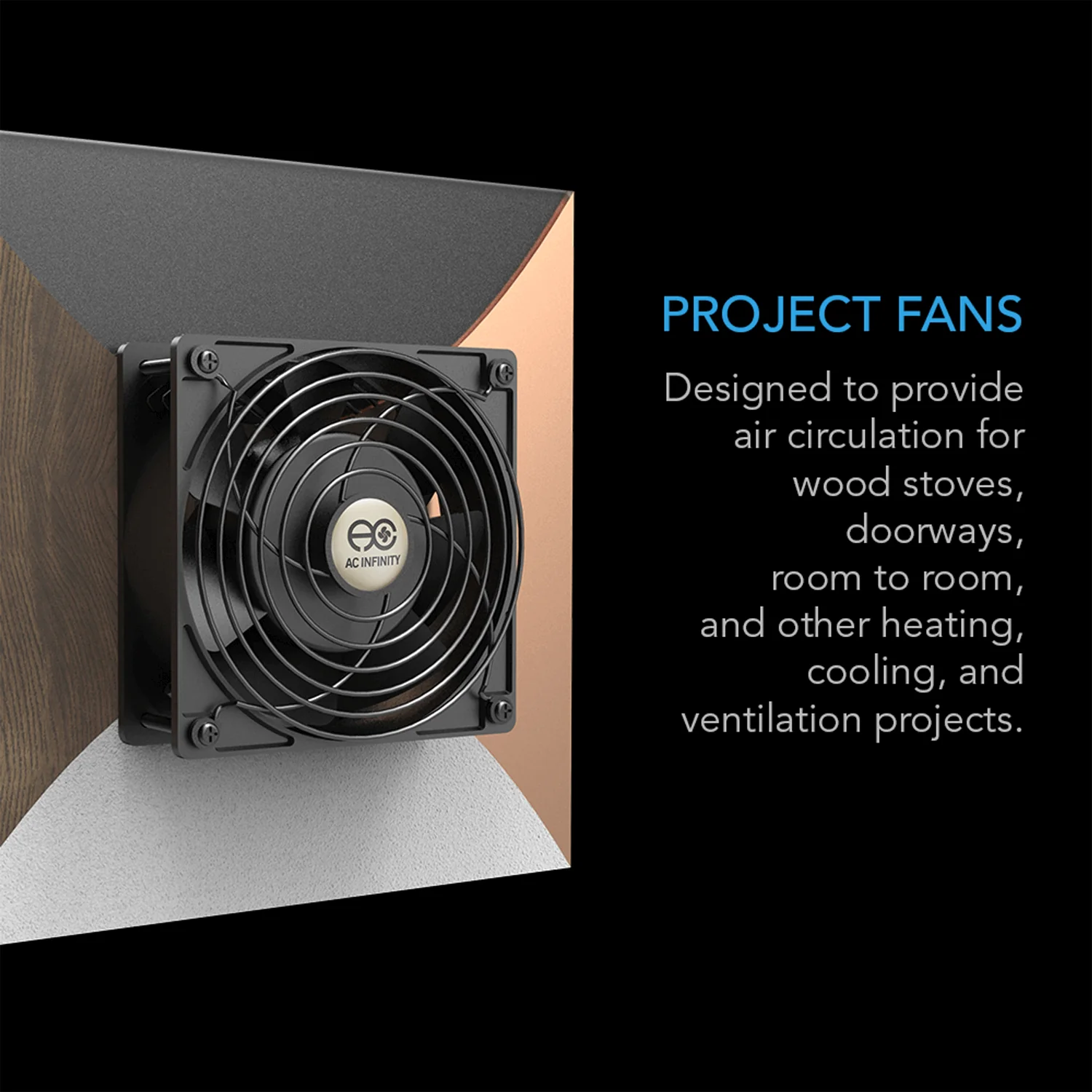

  • High Airflow Fans: These fans are designed for doorway, wood stoves, room-to-room, fireplace, and circulation projects. They feature a fan speed controller so you can optimize the airflow and noise for your application.

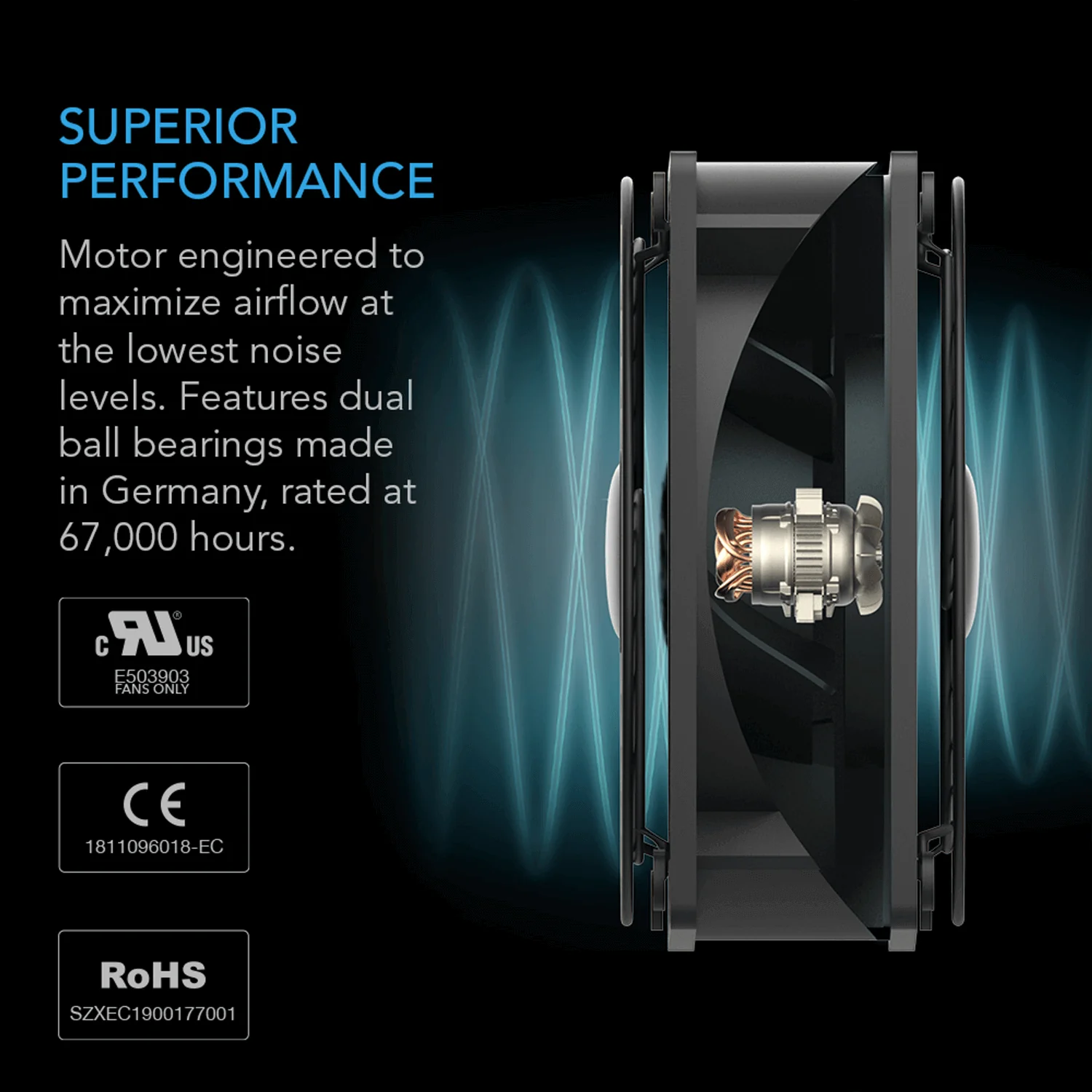

  • Long Lifespan: The UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours. These fans can be mounted in any direction enhancing their versatility.

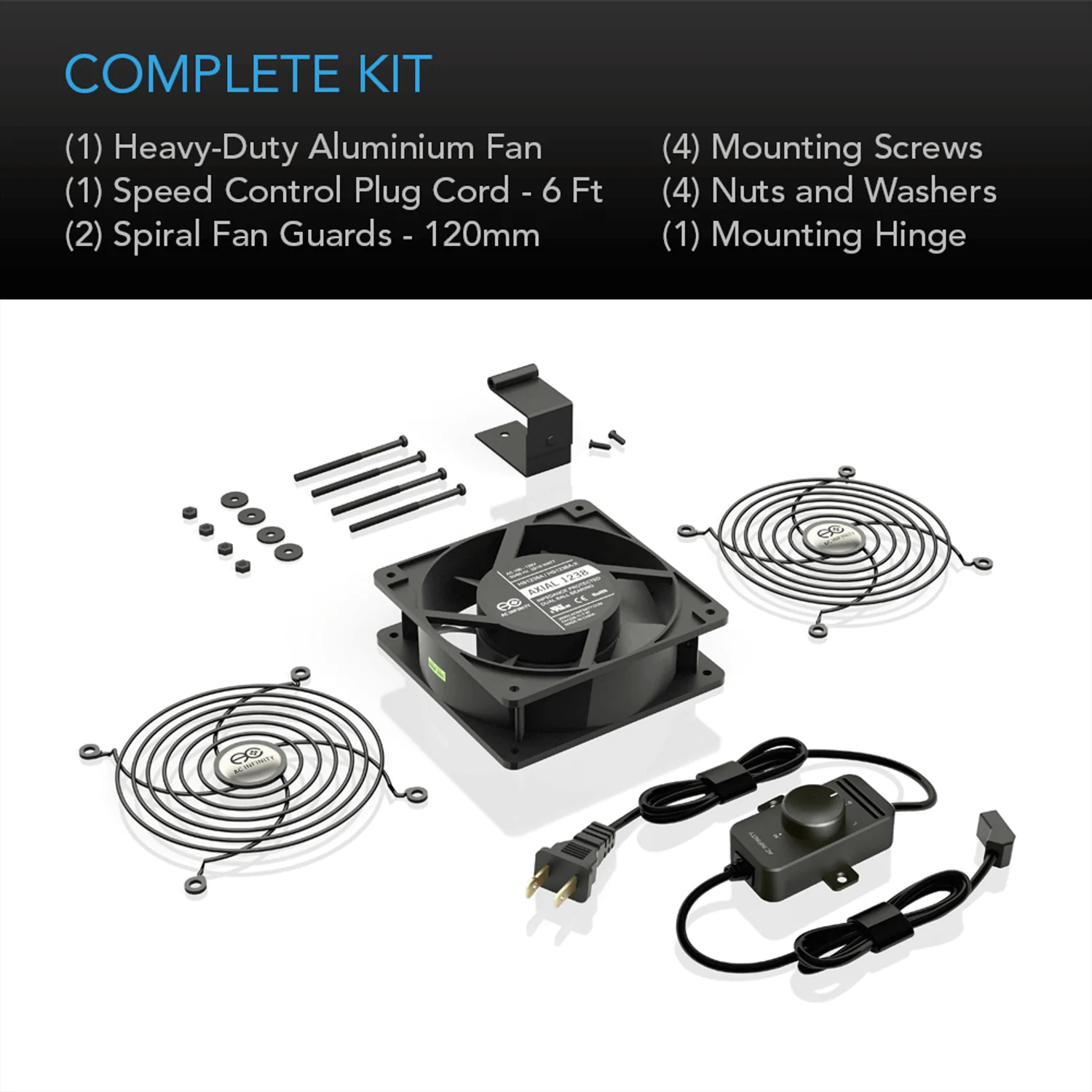

  • Comprehensive Kit: The kit includes heavy-duty aluminum fans, wire guards, mounting screws, swivel brackets, and a power cord. The fan measures 4.7 x 4.7 x 1.5 inches. It provides an airflow range from 40 to 110 CFM and produces noise within the range of 21 to 47 dBA.

  • Product Description: This is a high airflow fan kit designed to enable control of the ventilation and air circulation for a wide range of DIY projects. Features an inline controller to optimize the fan's airflow and noise levels. The dual-ball bearing fans can be mounted in any direction.

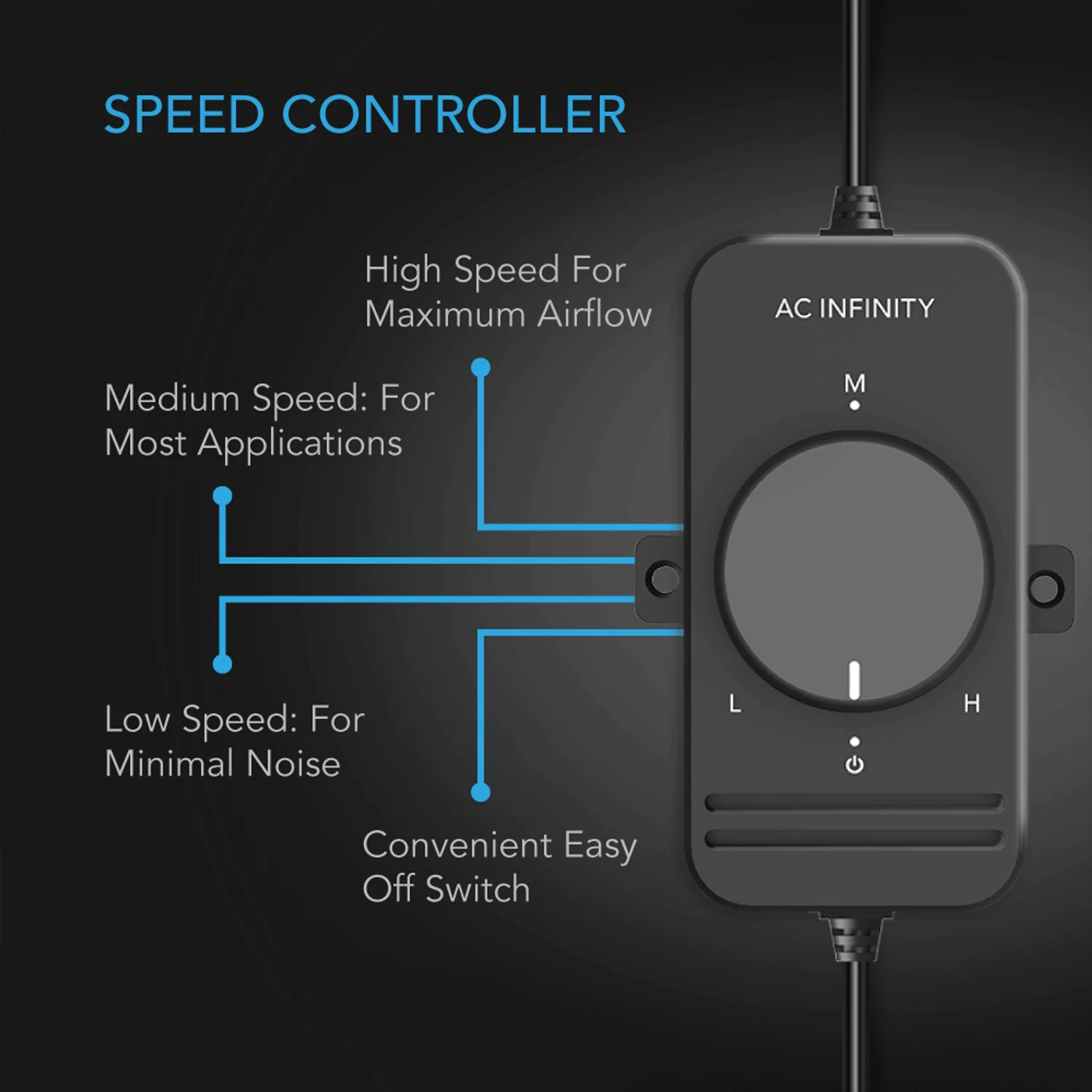

  • Speed Controller: The kit features a controller located on the power cord, which can turn the fan on and off and control its speed. Adjust the knob to optimize the fan's airflow and noise levels or use it to respond to situations requiring additional air movement.

  • Applications: This fan kit suits a wide range of cooling, heating, and air circulation applications, including various DIY projects for doorways, room-to-room, fireplaces, stoves, and cabinets. The inclusion of both swivel bracket mounting and wall-mounting hardware makes it suitable for a wide range of applications. The AC Infinity axial fan is UL recognized, as well as CE and RoHS certified.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL S1238
  • Product Model: AI-1238SCX
  • UPC Code: 819137020078

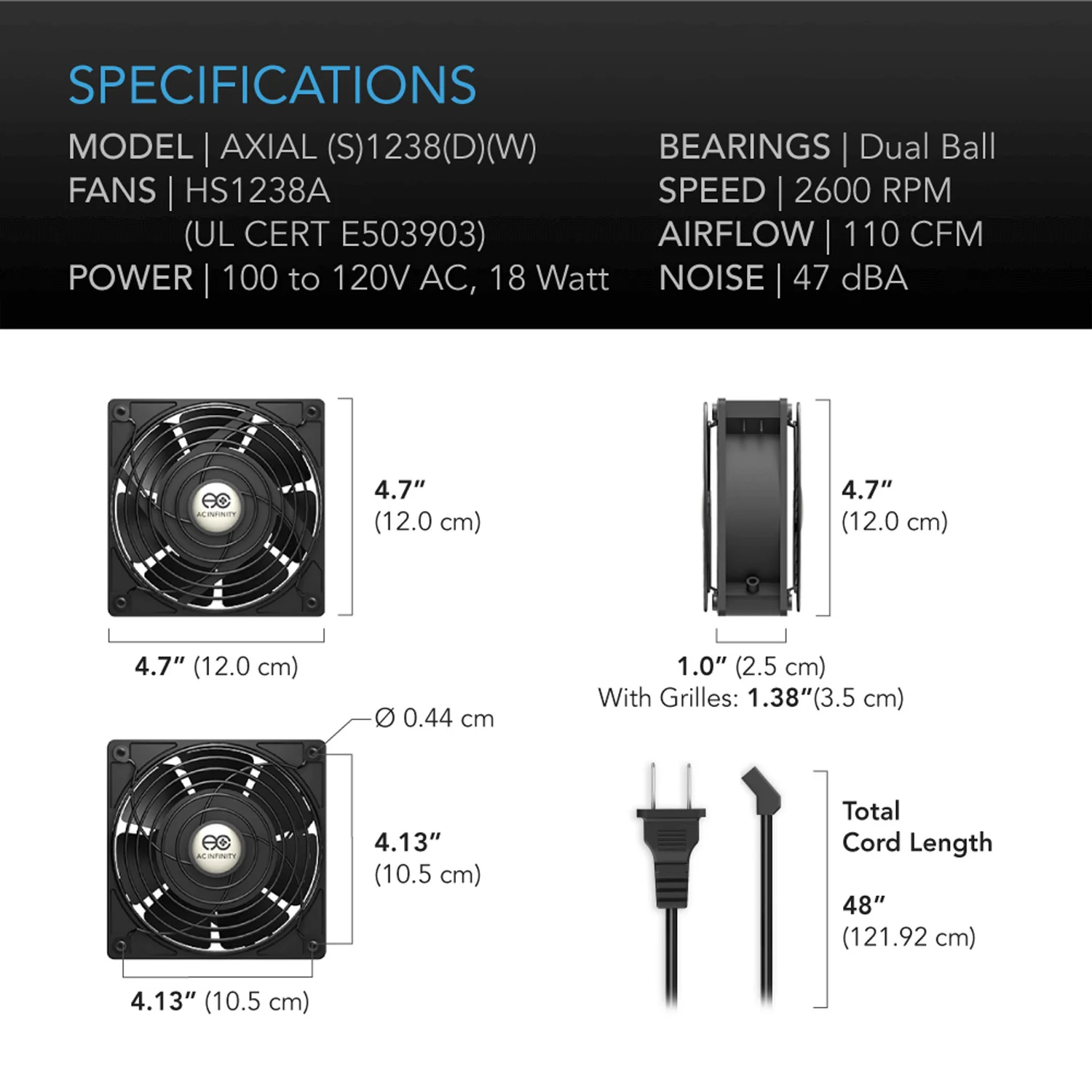

  • Product Dimensions
  • Total Dimensions: 4.7 x 4.7 x 1.5 inches
  • Hole to Hole Distance: 4.13 x 4.13 inches
  • Screw Hole Size: 0.17 inch diameter
  • Cord Length: 72 inches (6 feet) between fans 48 inches (4 feet)

  • Product Performance and Technical Specs
  • Fan Model: HS1238A
  • Number of Fans: 1
  • Total Airflow: 40 to 110 CFM
  • Total Noise: 21 to 47 dBA
  • Speed: 700 to 2600 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 18 W
  • Current: 0.16 A
  • Static Pressure: 9.1 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
    • $50.99
    AC Infinity AXIAL S1238, Muffin 120V AC Cooling Fan, 120mm x 120mm x 38mm—
    $50.99

    Product Information

    Shipping & Returns

    Description

    Description
  • High Airflow Fans: These fans are designed for doorway, wood stoves, room-to-room, fireplace, and circulation projects. They feature a fan speed controller so you can optimize the airflow and noise for your application.

  • Long Lifespan: The UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours. These fans can be mounted in any direction enhancing their versatility.

  • Comprehensive Kit: The kit includes heavy-duty aluminum fans, wire guards, mounting screws, swivel brackets, and a power cord. The fan measures 4.7 x 4.7 x 1.5 inches. It provides an airflow range from 40 to 110 CFM and produces noise within the range of 21 to 47 dBA.

  • Product Description: This is a high airflow fan kit designed to enable control of the ventilation and air circulation for a wide range of DIY projects. Features an inline controller to optimize the fan's airflow and noise levels. The dual-ball bearing fans can be mounted in any direction.

  • Speed Controller: The kit features a controller located on the power cord, which can turn the fan on and off and control its speed. Adjust the knob to optimize the fan's airflow and noise levels or use it to respond to situations requiring additional air movement.

  • Applications: This fan kit suits a wide range of cooling, heating, and air circulation applications, including various DIY projects for doorways, room-to-room, fireplaces, stoves, and cabinets. The inclusion of both swivel bracket mounting and wall-mounting hardware makes it suitable for a wide range of applications. The AC Infinity axial fan is UL recognized, as well as CE and RoHS certified.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL S1238
  • Product Model: AI-1238SCX
  • UPC Code: 819137020078

  • Product Dimensions
  • Total Dimensions: 4.7 x 4.7 x 1.5 inches
  • Hole to Hole Distance: 4.13 x 4.13 inches
  • Screw Hole Size: 0.17 inch diameter
  • Cord Length: 72 inches (6 feet) between fans 48 inches (4 feet)

  • Product Performance and Technical Specs
  • Fan Model: HS1238A
  • Number of Fans: 1
  • Total Airflow: 40 to 110 CFM
  • Total Noise: 21 to 47 dBA
  • Speed: 700 to 2600 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 18 W
  • Current: 0.16 A
  • Static Pressure: 9.1 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
