AC Infinity AIRLIFT S20, Shutter Exhaust Ventilation Fan 20", Speed Controller

AC Infinity AIRLIFT S20, Shutter Exhaust Ventilation Fan 20", Speed Controller

Description
  • High-Airflow Shutter Fan: This large fan is specially designed for the removal of stale air, ventilating greenhouses, garages, and more. The fan features a 10-level speed controller that deploys PWM technology to generate precise airflow. The innovative EC motor with PWM control enhances airflow while reducing energy consumption and noise level. It is protected by an IP44-rated frame which comprises steel shutters and fan blades that resist moisture and dust while blocking debris.

  • Product specifications: Fan Size: 20” and Dimensions: 23.0 x 23.0 x 11.2 in. It shows an Airflow: 3425 CFM and Noise: 65 dBA and offers Dual Ball Bearings.

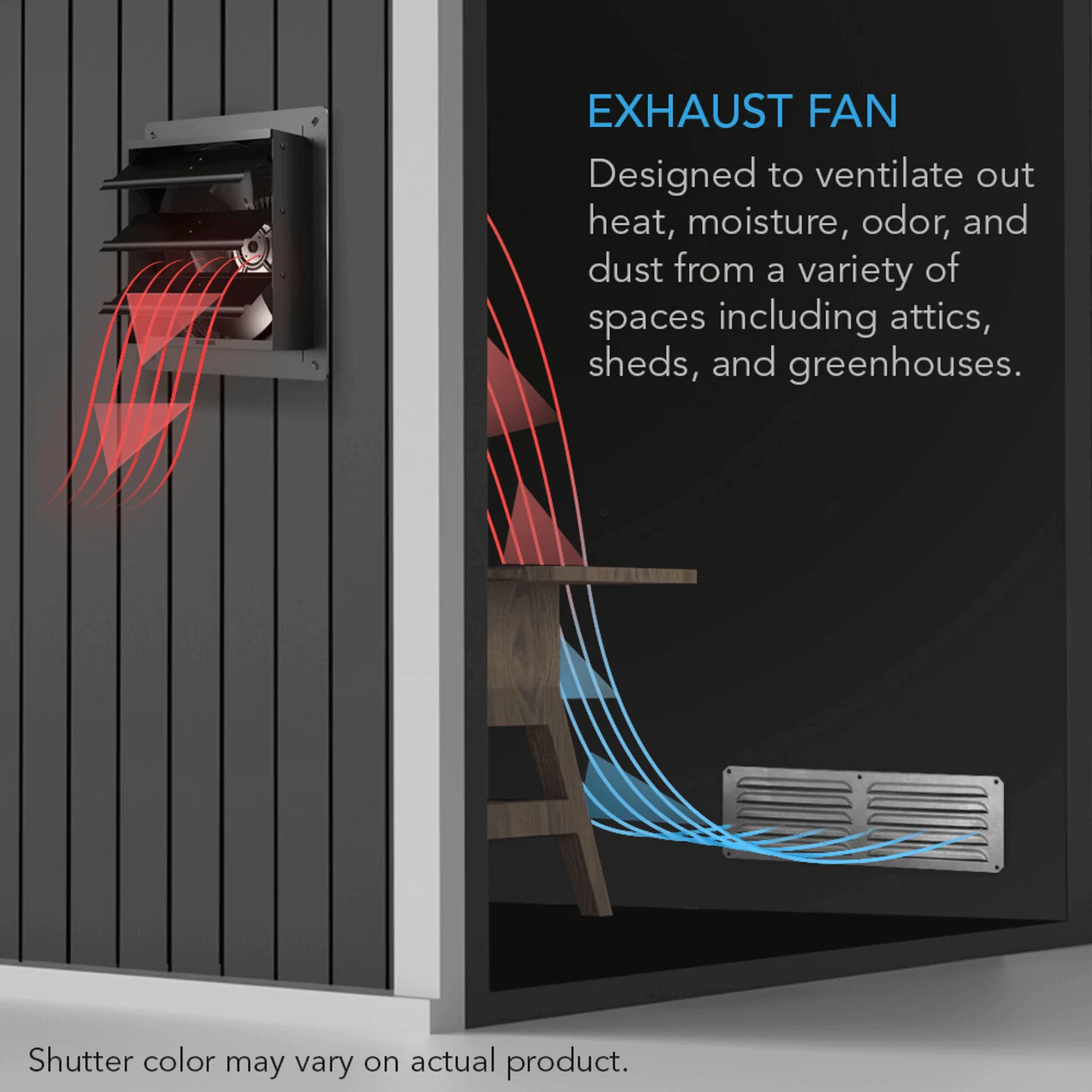

  • Product Description: The shutter exhaust fan is designed to improve ventilation in large spaces such as warehouses, greenhouses, garages, and workshops. By installing this exhaust fan, it refreshes your workspace by regulating heat, moisture, and odor levels, thereby enhancing comfort. Run by a PWM-controlled EC motor, it is energy-efficient and allows precise fan speed control to create your ideal ventilation level.

  • Precision Fan Speed Control: This shutter fan boasts a speed controller that permits you to set its speed to optimize noise and airflow levels in various environments. Its EC motor is precisely controlled using PWM (Pulse Width Modulation), enabling it to run smoothly at extremely low RPM speeds without generating motor noise. It provides ten-speed options complete with a power switch and backup memory.

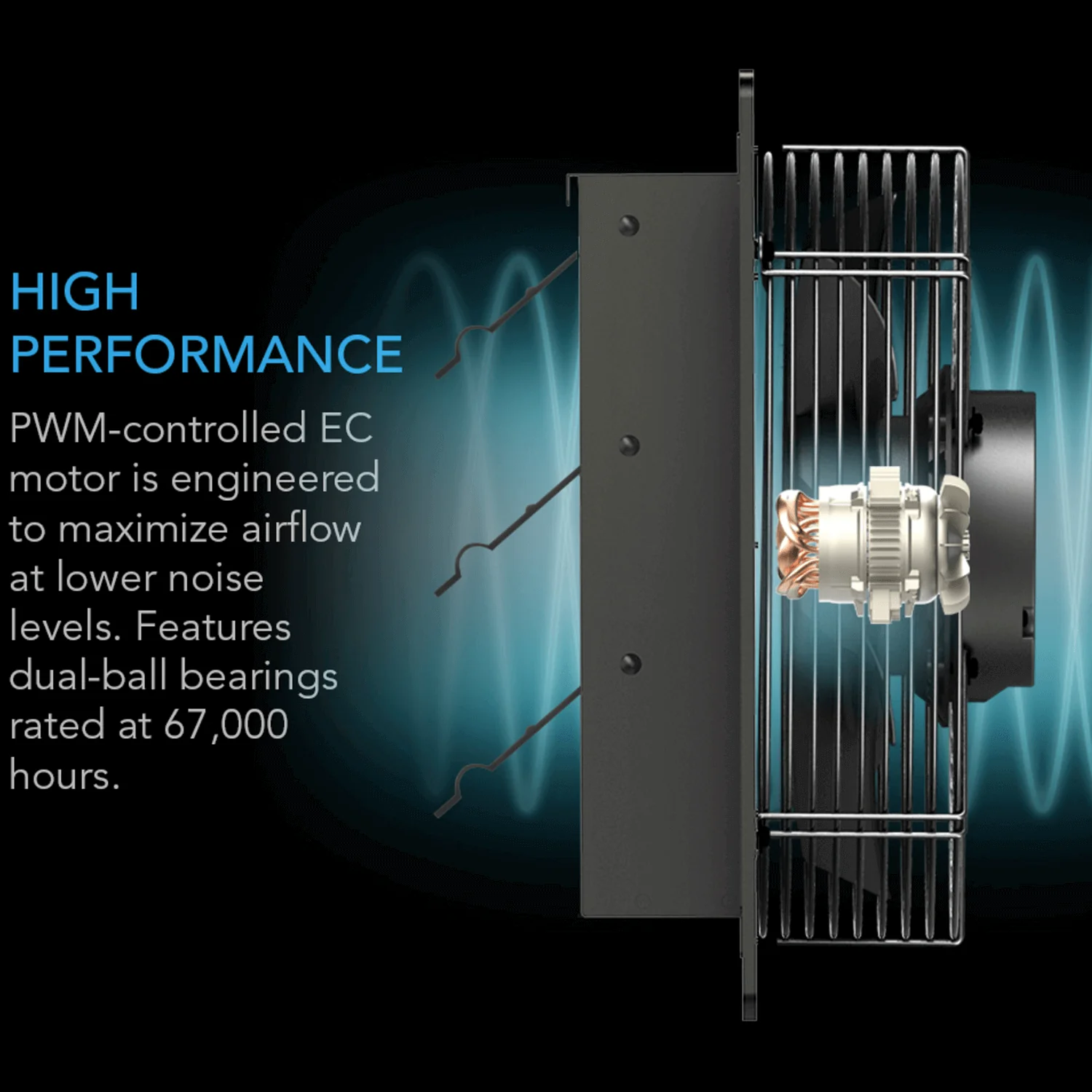

  • Heavy-duty Performance: It features steel shutters that are weather and corrosion-resistant, closing automatically when not in use to prevent dust, debris, and moisture from entering your space. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. The innovative EC motor that is electronically controlled using PWM (Pulse Width Modulation) maximizes airflow while reducing noise and power consumption. Its fully enclosed motor is permanently lubricated and houses dual-ball bearings rated at 67,000 hours. The unit is IP-44 rated, proving highly resistant to dust and liquids and performs well even in harsh environments.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRLIFT S20
  • Product Model: AC-ALS20
  • UPC Code: 819137024229

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 23.03 x 23.03 x 11.21 in (58.5 x 58.5 x 28.5 cm)
  • Frontside Enclosure Dimensions: 20.62 x 20.62 in (52.4 x 52.4 cm)
  • Required Mounting Hole: 22.24 x 22.24 in (56.5 x 56.5 cm)
  • Hole to Hole Distance: 15.94 x 15.94 in (40.5 x 40.5 cm)
  • Screw Hole Size: Ø 0.31 in (Ø 0.8 cm)
  • Cord Length to Controller: 120 in (10 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.34 x 2.95 x 0.51 in (8.5 x 3.6 x 1.3 cm)

  • Product Performance and Technical Specs
  • Total Airflow: 3425 CFM
  • Total Noise: 65 dBA
  • Static Pressure: 107 Pa
  • Operating Voltage: 100-240V AC
  • Power: 230W
  • Current: 3.2 A
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Life Expectancy: 67,000 Hours
    • Data Sheets
  • Download the product manual: here
  • Download the CE Certification: here
    • $369.00
    AC Infinity AIRLIFT S20, Shutter Exhaust Ventilation Fan 20", Speed Controller—
    $369.00
