AC Infinity AIRLIFT S10, Shutter Exhaust Ventilation Fan 10", Speed Controller

AC Infinity AIRLIFT S10, Shutter Exhaust Ventilation Fan 10", Speed Controller

Description
  • High-Airflow Exhaust Fan: Designed to ventilate heat, moisture, odor, and dust from various spaces, this fan features an 8-speed manual controller utilizing PWM-technology. The innovative EC-motor with PWM-control optimises airflow whilst reducing energy consumption and noise levels. The fan is equipped with steel shutters, aluminum blades, and is rated IP-44, making it highly resistant to liquid and dust.

  • Specifications: The fan size is 10”, with dimensions of 13.0 x 13.0 x 7.79 inches. It provides airflow of 631 CFM and operates at a noise level of 67 dBA. It contains dual ball bearings, adding to its performance and durability.

  • Detailed Product Description: This high-airflow exhaust fan is ideal for cooling and ventilating greenhouses, garages, attics, workshops, and sheds. The system can automatically eliminate heat, moisture, odor, and dust from enclosures, rooms, and buildings. Also included is everything you need to mount and power the fan unit through an outlet.

  • Precise Speed Controller: The inline speed controller regulates the shutter fan’s speed to optimize noise and airflow levels for various environments. PWM (Pulse Width Modulation) technology allows the fan's motor to run smoothly at extremely low RPM speeds without generating noise and heat. The fan boasts eight-speed options with a power switch, and backup memory.

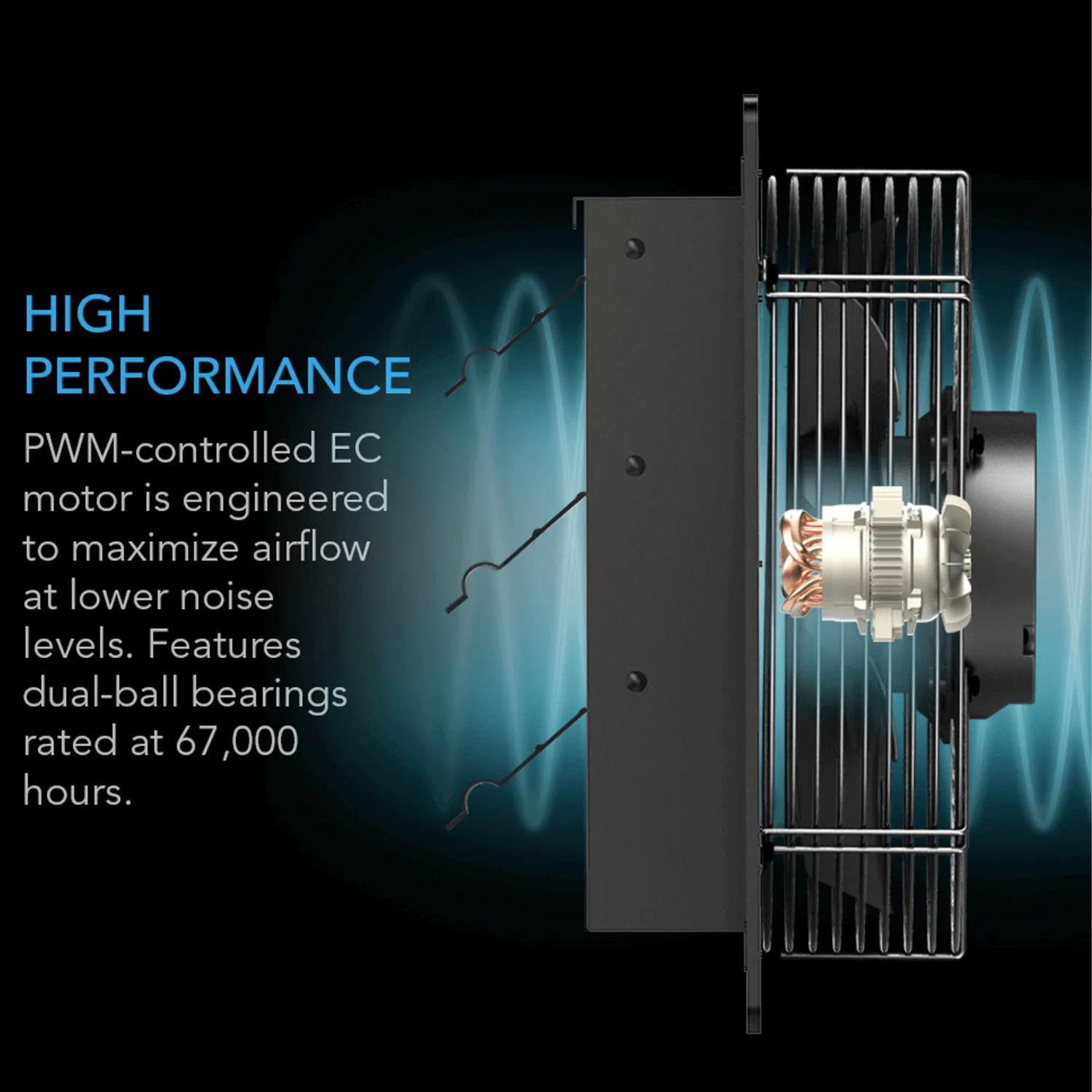

  • Heavy-Duty Performance: Steel shutters are weather and corrosion resistant, and automatically close when not in use. The blades and impeller are constructed from lightweight aluminum, balanced to reduce vibrations. The fully-enclosed motor is permanently lubricated, housing dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRLIFT S10
  • Product Model: AC-ALS10
  • UPC Code: 819137021433

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 13.0 x 13.0 x 7.79 in. (33.0 x 33.0 x 19.8 cm)
  • Frontside Enclosure Dimensions: 10.62 x 10.62 x 2.20 in. (27.0 x 27.0 x 5.6 cm)
  • Required Mounting Hole: 10.78 x 10.78 in. (27.4 x 27.4 cm)
  • Hole to Hole Distance: 11.41 x 11.41 in. (29.0 x 29.0 cm)
  • Screw Hole Size: Ø 0.27 in. (Ø 0.7 cm)
  • Cord Length to Controller: 240 in. (20 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
  • Required Mounting Area: 2.95 x 0.51 in. (3.6 x 1.3 cm)
  • Hole to Hole Distance: 2.87 in. (7.3 cm)
  • Screw Hole Size: Ø 0.157 in. (Ø 0.4 cm)
  • Cord Length to Plug: 96 in. (8 feet)

  • Product Performance and Technical Specs
  • Total Airflow: 631 CFM
  • Total Noise: 67 dBA
  • Static Pressure: 96 Pa
  • Operating Voltage: 100-240V AC
  • Power: 54W
  • Current: 1.0A
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheets
  • Download the product manual: here
  • Download the CE Certification: here
    • $147.99
    AC Infinity AIRLIFT S10, Shutter Exhaust Ventilation Fan 10", Speed Controller—
    $147.99

    Product Information

    Shipping & Returns

    Description

    Description
  • High-Airflow Exhaust Fan: Designed to ventilate heat, moisture, odor, and dust from various spaces, this fan features an 8-speed manual controller utilizing PWM-technology. The innovative EC-motor with PWM-control optimises airflow whilst reducing energy consumption and noise levels. The fan is equipped with steel shutters, aluminum blades, and is rated IP-44, making it highly resistant to liquid and dust.

  • Specifications: The fan size is 10”, with dimensions of 13.0 x 13.0 x 7.79 inches. It provides airflow of 631 CFM and operates at a noise level of 67 dBA. It contains dual ball bearings, adding to its performance and durability.

  • Detailed Product Description: This high-airflow exhaust fan is ideal for cooling and ventilating greenhouses, garages, attics, workshops, and sheds. The system can automatically eliminate heat, moisture, odor, and dust from enclosures, rooms, and buildings. Also included is everything you need to mount and power the fan unit through an outlet.

  • Precise Speed Controller: The inline speed controller regulates the shutter fan’s speed to optimize noise and airflow levels for various environments. PWM (Pulse Width Modulation) technology allows the fan's motor to run smoothly at extremely low RPM speeds without generating noise and heat. The fan boasts eight-speed options with a power switch, and backup memory.

  • Heavy-Duty Performance: Steel shutters are weather and corrosion resistant, and automatically close when not in use. The blades and impeller are constructed from lightweight aluminum, balanced to reduce vibrations. The fully-enclosed motor is permanently lubricated, housing dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRLIFT S10
  • Product Model: AC-ALS10
  • UPC Code: 819137021433

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 13.0 x 13.0 x 7.79 in. (33.0 x 33.0 x 19.8 cm)
  • Frontside Enclosure Dimensions: 10.62 x 10.62 x 2.20 in. (27.0 x 27.0 x 5.6 cm)
  • Required Mounting Hole: 10.78 x 10.78 in. (27.4 x 27.4 cm)
  • Hole to Hole Distance: 11.41 x 11.41 in. (29.0 x 29.0 cm)
  • Screw Hole Size: Ø 0.27 in. (Ø 0.7 cm)
  • Cord Length to Controller: 240 in. (20 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
  • Required Mounting Area: 2.95 x 0.51 in. (3.6 x 1.3 cm)
  • Hole to Hole Distance: 2.87 in. (7.3 cm)
  • Screw Hole Size: Ø 0.157 in. (Ø 0.4 cm)
  • Cord Length to Plug: 96 in. (8 feet)

  • Product Performance and Technical Specs
  • Total Airflow: 631 CFM
  • Total Noise: 67 dBA
  • Static Pressure: 96 Pa
  • Operating Voltage: 100-240V AC
  • Power: 54W
  • Current: 1.0A
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheets
  • Download the product manual: here
  • Download the CE Certification: here
