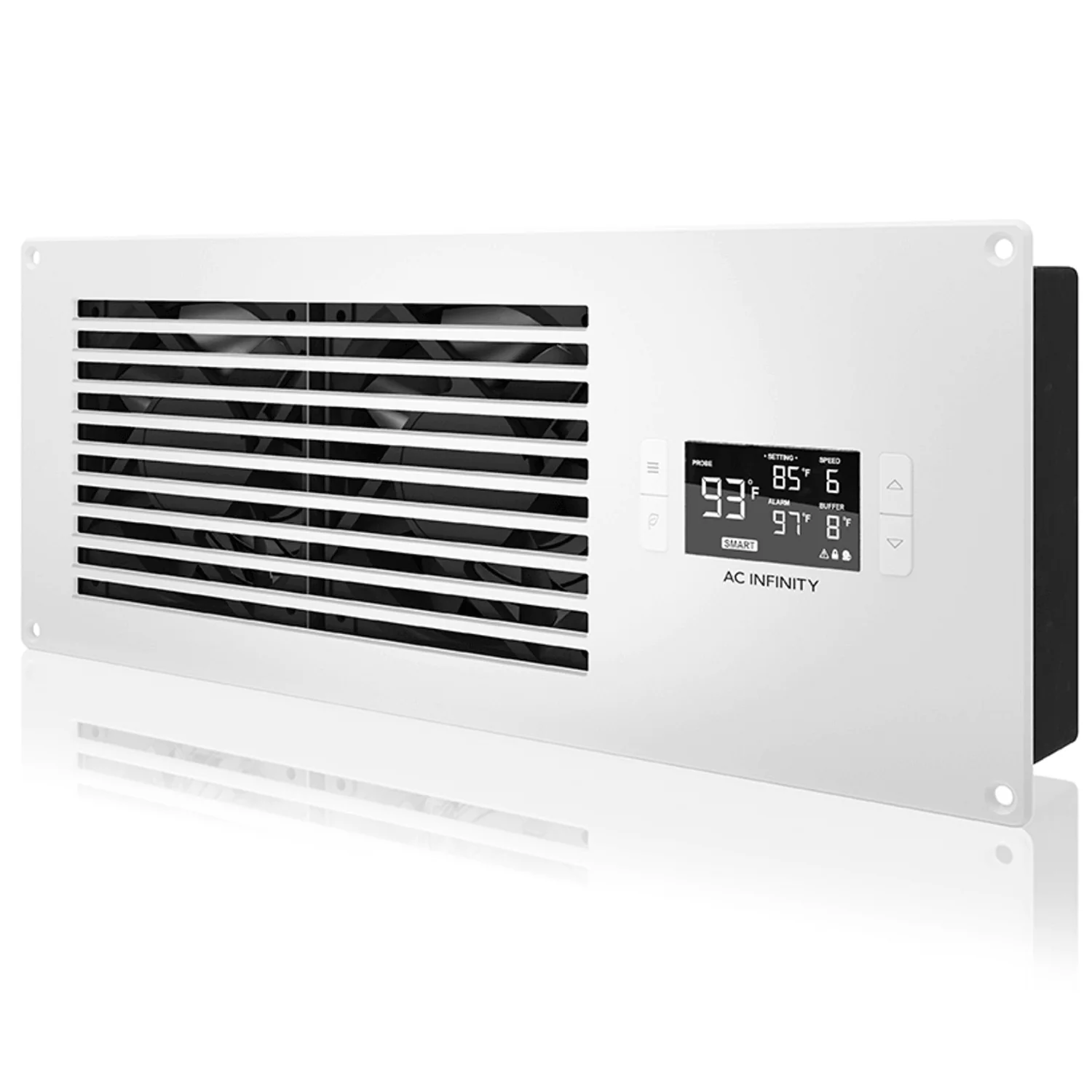

AC Infinity AIRFRAME T7 White, Equipment Closet and Room Fan System 17", Exhaust

AC Infinity AIRFRAME T7 White, Equipment Closet and Room Fan System 17", Exhaust

Description
  • High-Airflow Fan System: This product is designed for optimal cooling in AV equipment rooms, closets, and larger enclosures. The system is highly efficient in ventilating rooms that house various audio-video components and equipment. Constructions are of premium anodized aluminum and showcase professional CNC-machined detailing.

  • Programmable Thermostat Controller: Equipped with automated speed control, alarm warnings, and backup memory, this device intelligently helps you manage the temperature in your space. It features an easy-to-use thermostat and a SMART mode that adjusts the fan's speed in response to changing temperatures. Please note the unit also possesses fan failure triggers, power-saving settings, display lock, and backup memory.

  • Detachable Nylon-Mesh Filter: It comes with a detachable nylon-mesh filter that prevents dust particles from infiltrating the room and potentially harming your equipment. This filter is conveniently designed for easy cleaning. Features long life dual ball bearings, rated at 67000 hours, allowing the fan system to be mounted in either a horizontal or vertical orientation.

  • Specifications: The unit features a sleek white design with an exhaust mechanism. Its dimensions measure 16.5 x 6.5 x 2.3 inches, and it boasts an airflow capacity of 200 Cubic Feet per Minute (CFM). It operates at a noise level of 26 decibels and utilizes dual-ball bearings. All the necessary hardware for easy mounting on a door or wall and powering through an outlet is included.

  • Intelligent Cooling: Six fan speeds are available with three different screen brightness settings designed for various requirements and preferences.

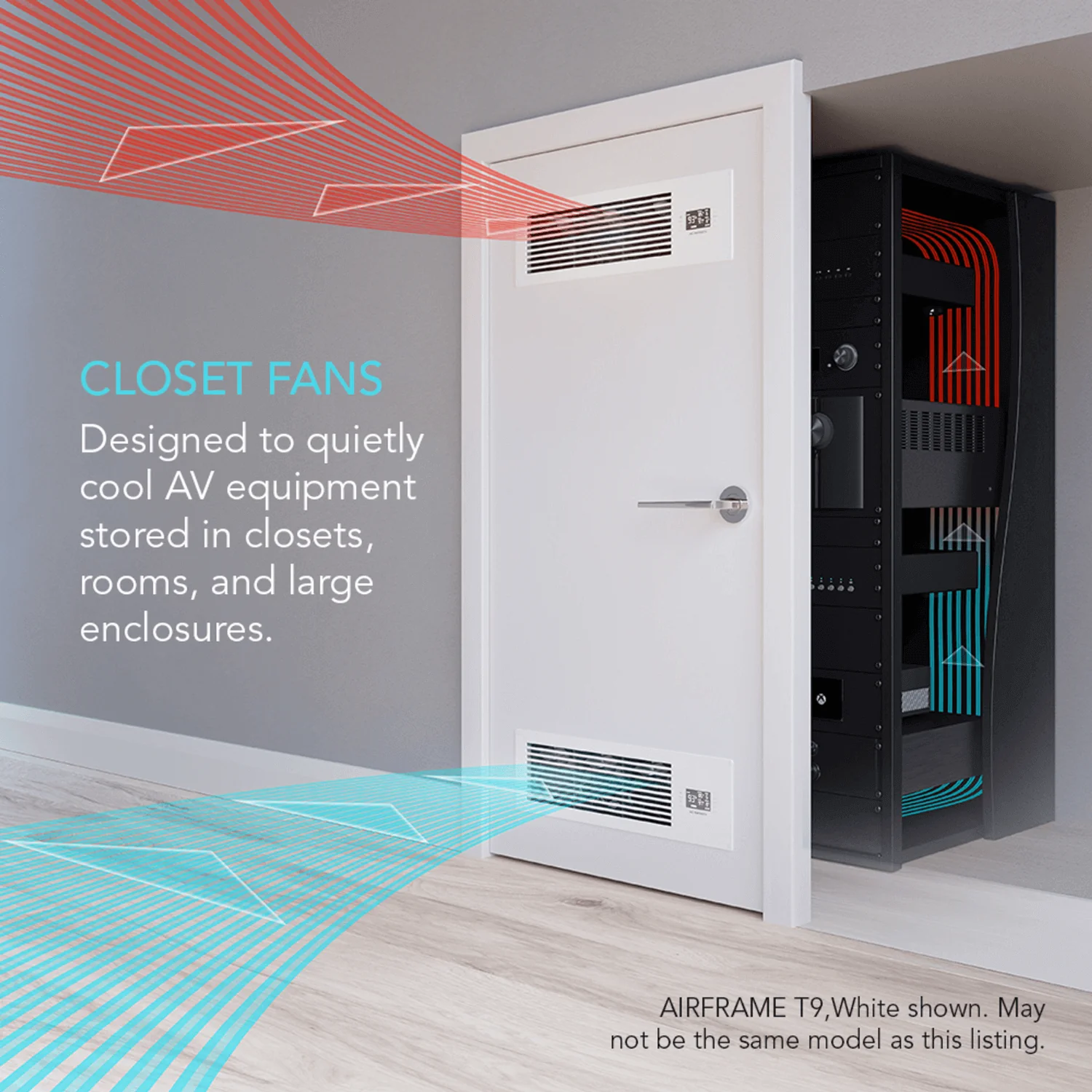

  • Applications: Ideal for mounting on doors or walls of equipment closets, rooms, and large-sized enclosures. With an airflow rating of 200 CFM, this high-airflow fan system provides adequate cooling for small AV closets that store server, network, IT, and equipment racks.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRFRAME T7 White, Exhaust
  • Product Model: AC-AFT7-WE
  • UPC Code: 819137020160

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 16.5 x 6.49 x 2.28 in. (41.9 x 16.5 x 5.8 cm)
  • Backside Enclosure Dimensions: 15.39 x 5.55 in. (39.1 x 14.1 cm)
  • Required Mounting Hole: 15.51 x 5.59 in. (39.4 x 14.2 cm)
  • Hole to Hole Distance: 15.90 x 5.83 in. (40.4 x 14.8 cm)
  • Screw Hole Size: Ø 0.197 in (Ø 0.5 cm)
  • Cord Length: 72 in (6 feet)
  • Mounting Template:
  • Installation Manual PDF:

  • Product Performance and Technical Specs
  • Design: White
  • Design: Exhaust
  • Total Airflow: 200 CFM
  • Total Noise: 26 dBA
  • Static Pressure: 5.5 mm-H2O
  • Operating Voltage: 12V DC
  • Power: 20 W
  • Current: 1.6 A
  • Wall Adapter Input: 100 to 240V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 158°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
  • Fan Quality Approvals: CE, RoHS
    • Data Sheets
  • Download the product manual: here
  • Download the Mounting Template: here
  • Download the CE Certification: here
  • Download the RoHS Certification: here
    • $38.70

    Original: $129.00

    -70%
    AC Infinity AIRFRAME T7 White, Equipment Closet and Room Fan System 17", Exhaust—

    $129.00

    $38.70
